DIY Canopy
- Thread starter sal123
- Start date
I'm building one now. What type of lights are you looking to use? Are there any other bells and whistles. I have a sketch that I am working off of. if you want I can share it. Mine has enough room for two T5 fixtures from my local hardware store and a T8. I am still building but it seems as if all will go well.
PM me and I will get you the details.
PM me and I will get you the details.
Here are my build photos: (Still in progress)

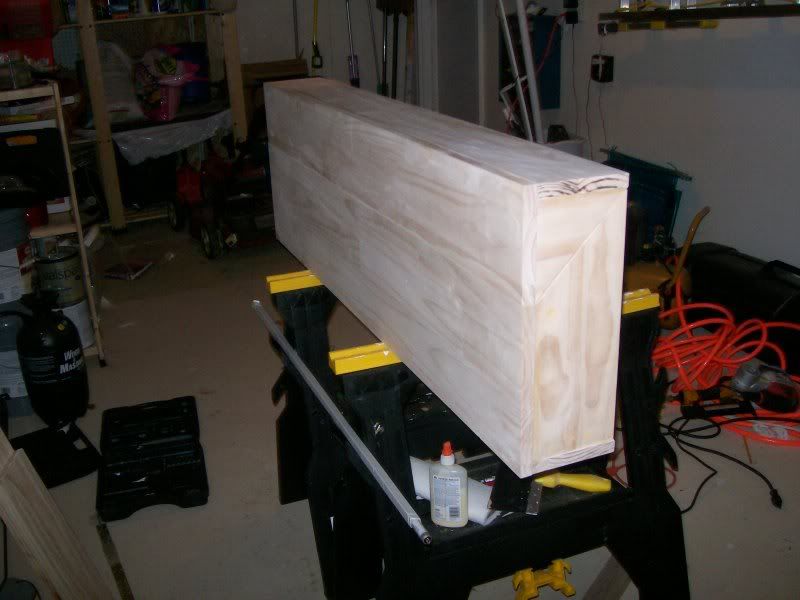

Overall Shot:
Two Pieces - Base and Hinged End
IMG]http://i7.photobucket.com/albums/y281/r0adk1ll88/100_0844.jpg[/IMG]

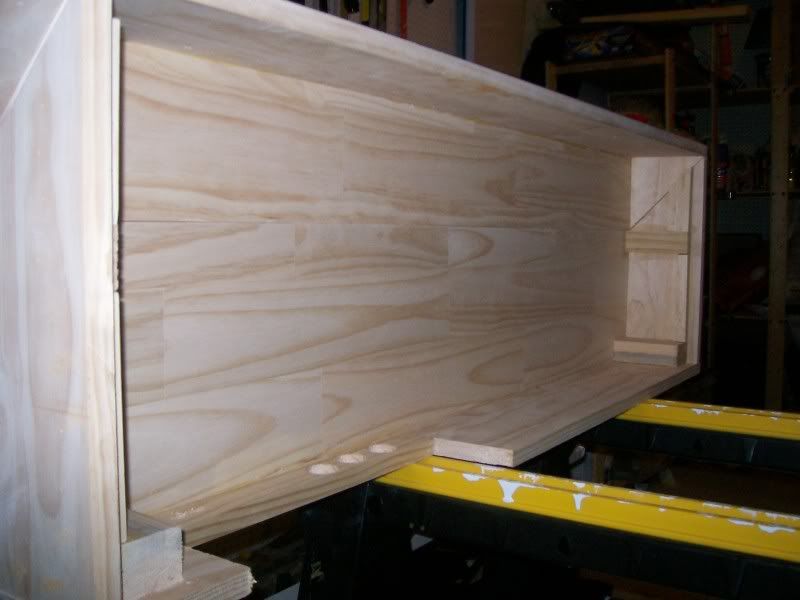

Underside:

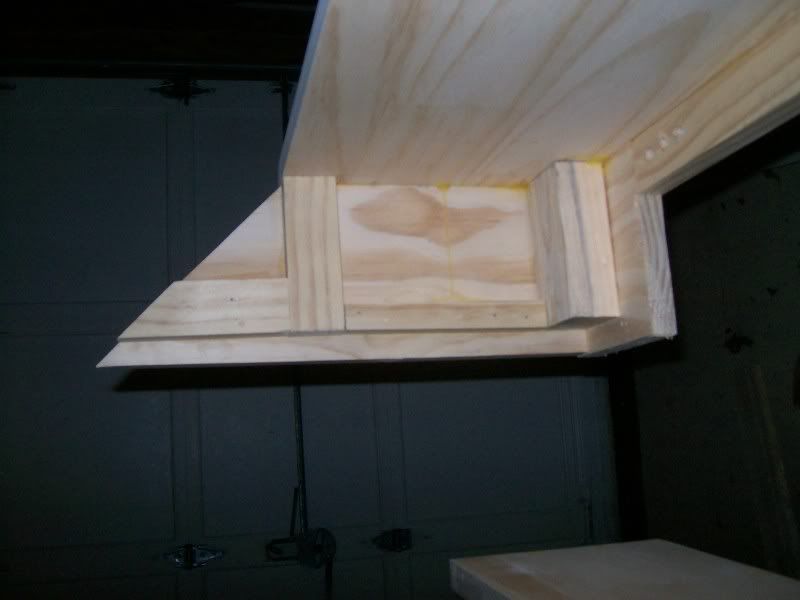

Side Supports: (Made of stud at back corners and 1X's scrap)

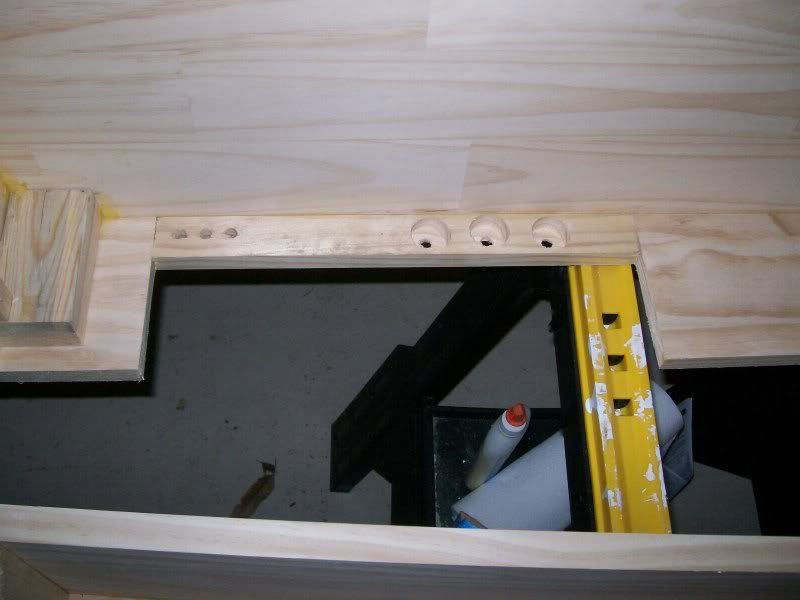

Filter Pocket, Switch ports, Cord holes: (Made for three light banks 2 dual T5 Fixtures and one T8)

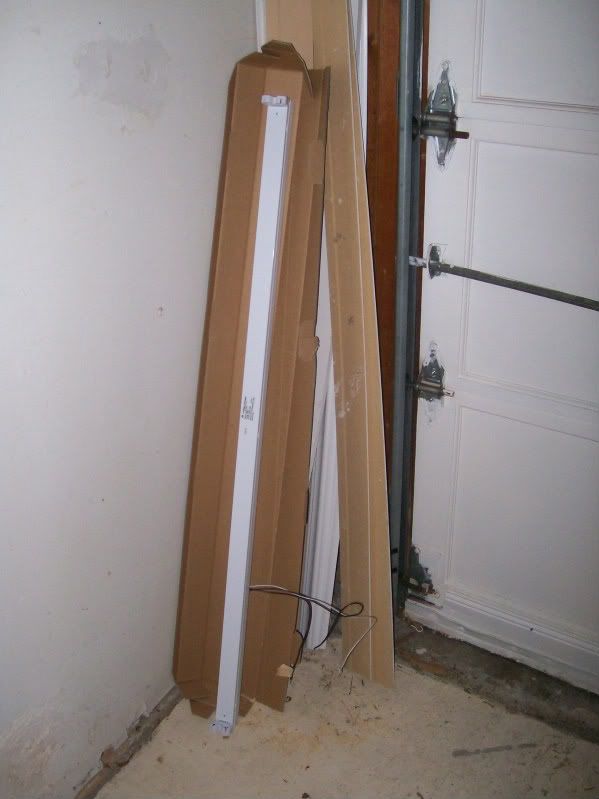

T5 Fixture to be mounted into hood. (This has been previously wired and removed to stain)
I still need to install the hinge. I picked a 48" from LHS for $10. I will most likely add some fans to the hood as well but I'm working on the cheapest way to do it. Probably just a couple of computer fans with a 12v transformer wired into the hood. Work is slow so it will probably be a couple of weeks before its done. I'm working about 5 minutes at a time due to a little one at home and family visiting for the next couple of weeks.

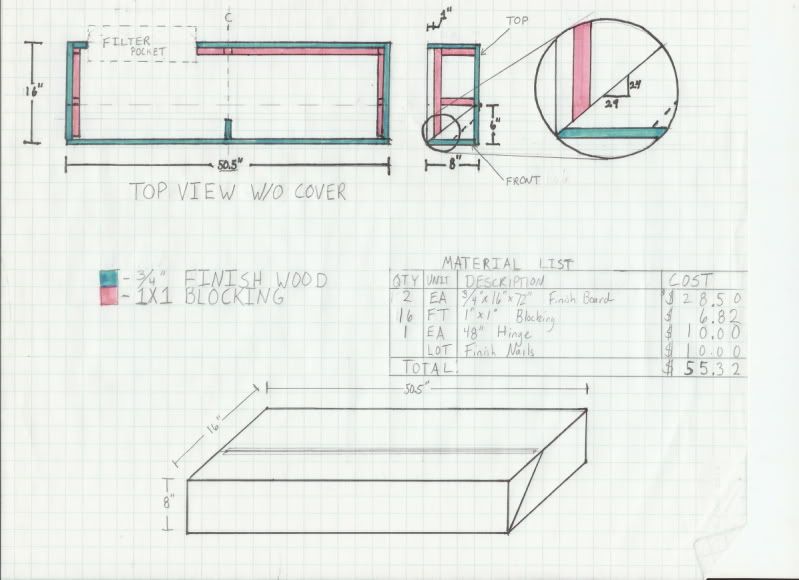

The entire hood is 50.5" long 16" Wide and 6" Deep. The original design sketch is below but I made some modifications and eliminated the rear supports (Weren't needed)
Feel free to question/comment.
