DIY Stands

[fishguy1978]

I was asked about how my stands are constructed so here they are.

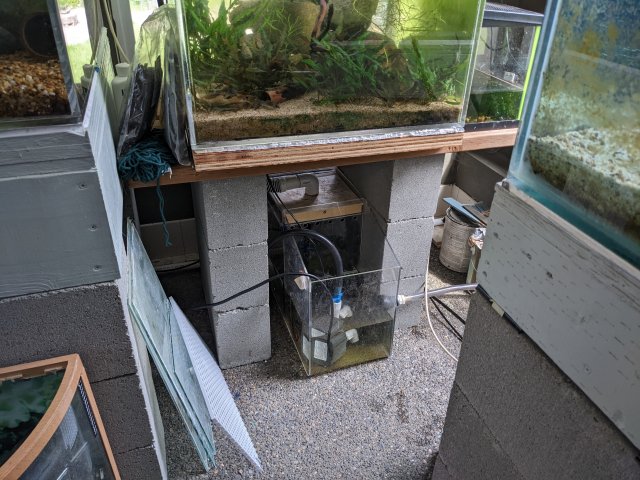

60g acrylic (24in cube): flat 2x6s and 2 layers of 3/4in plywood on 9x18 cinder blocks

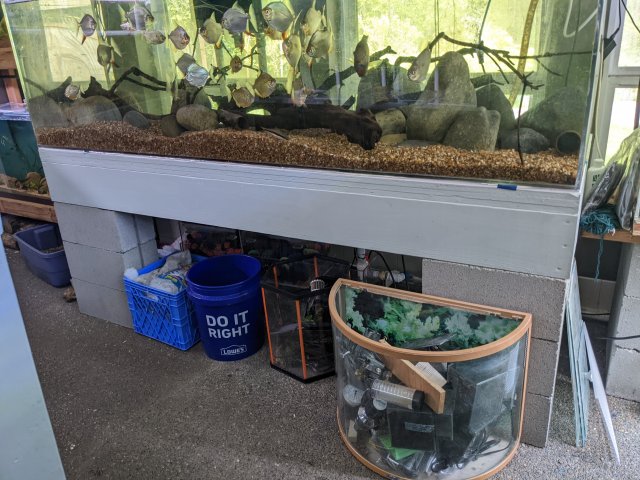

100g acrylic (60in x 18in x 24im: 2x6 laid flat and 2 layers of 3/4 plywood on 6x18 cinder blocks

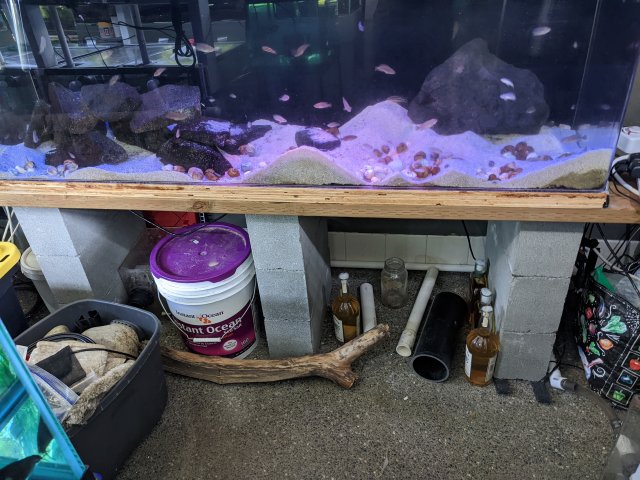

140g acrylic (60in x 24in x 22in): 2x6 with single layer of 3/4 plywood on 9x18 block. 1/2in foam cushion.
Under the 140 are 2 cross braces

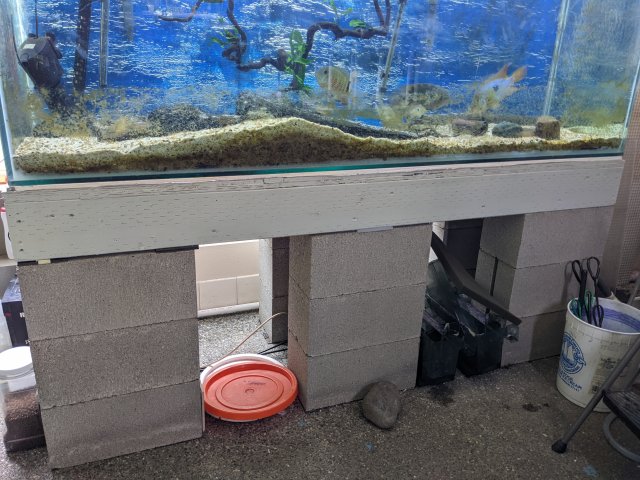

220g glass (72in x 24in x 30in): salvaged 2x8s and 2 layers of salvaged 1/2in plywood on 9x18 block. 1/2in foam cushion. This was the hardest to level. I borrowed a laser level from a buddy.
Underside of the 220

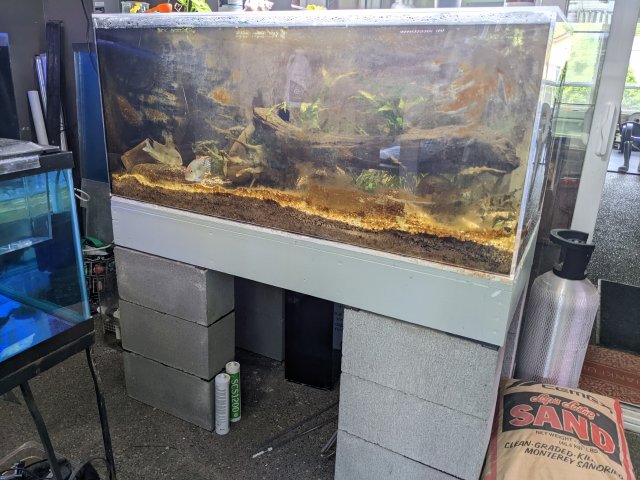

260g acrylic (84in x 30in x 24in) on 2x8s and 3 layers of 3/4in plywood on 9x18 block. 1/2in foam cushion.

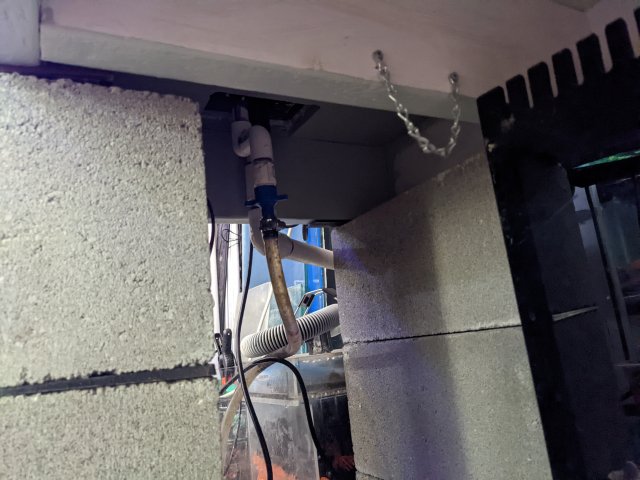

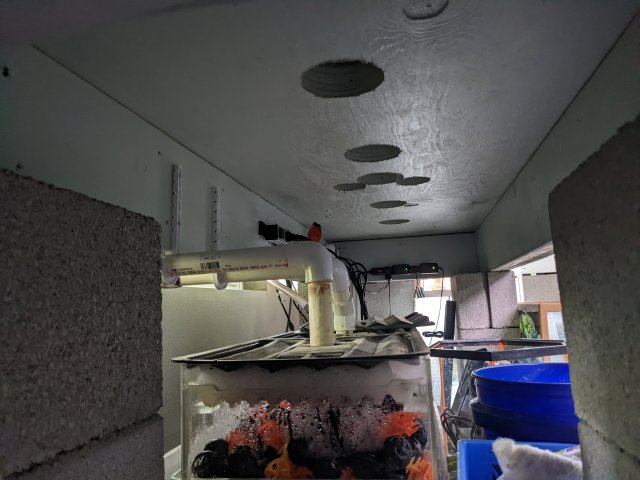

Under the 260g came drilled for center drains but I capped with acrylic and added a side mounted overflow. I had drilled the stand before changing my mind.



[FINWIN]

So you added the cross bracing underneath instead of extra blocks for clearance / filtrattion, right?

Nice builds, btw.



[fishguy1978]

So you added the cross bracing underneath instead of extra blocks for clearance / filtrattion, right?

Nice builds, btw.

Thank you. Yes and no, their just overbuilt. There's a calculator for determining sag across a span, https://rb.gy/pc1xj4, that I use. I am planning on removing the center pier on the 220g so I can install a sump.
