Fluval Fx5 Spray bar mod

[ashmyster]

Just a clip of a spray bar i made for my fx5
[YT]2zw4kAstqCc[/YT]



[Spiritofthesoul]

neat i like. How did you do it?

Perharps post a tutorial and list of parts u used for this mod. I wanna switch from the dual output nozzle into a spraybar, but haven seen any decent ones. Yours is by far the greatest i have seen.



[newshound]

that is something i'd like to see as well!



[ramcharger1979]

And I thought my spray bar was long!!



[ashmyster]

And I thought my spray bar was long!!

ye its 1 meter long



[Mastiffman]

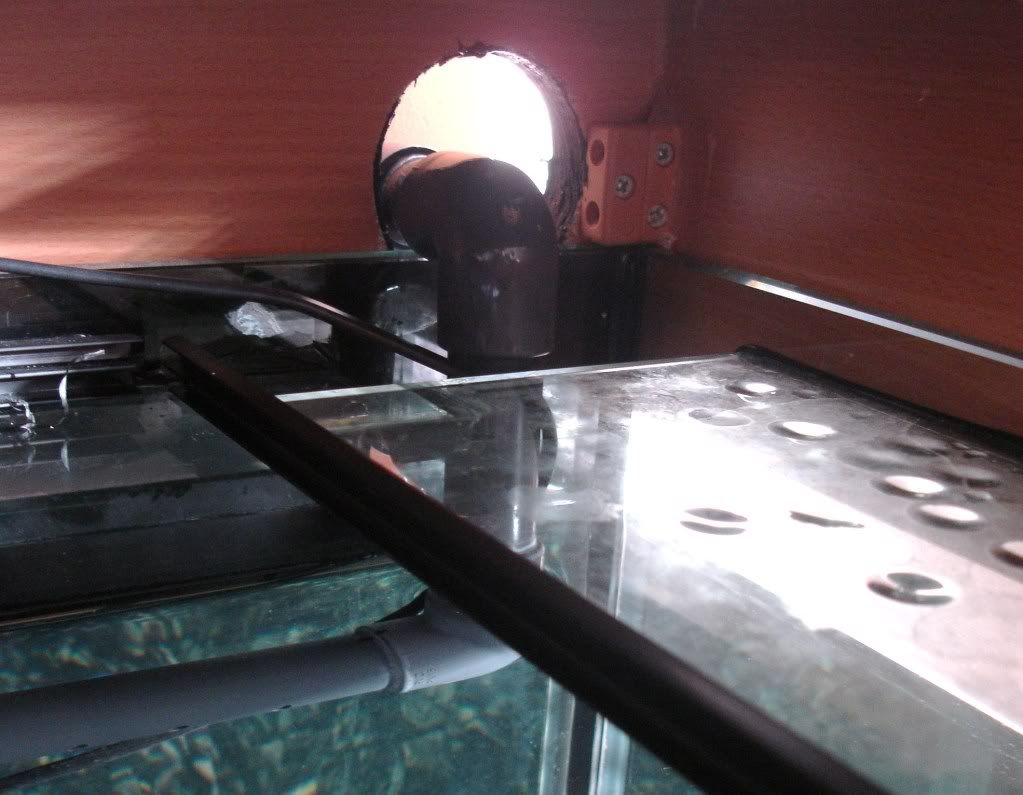

Nice. Just some Black PVC with holes drilled in it, an End cap and a PVC Elbow that fits into the Rubber Hose Connector, Correct?



[ashmyster]

Nice. Just some Black PVC with holes drilled in it, an End cap and a PVC Elbow that fits into the Rubber Hose Connector, Correct?

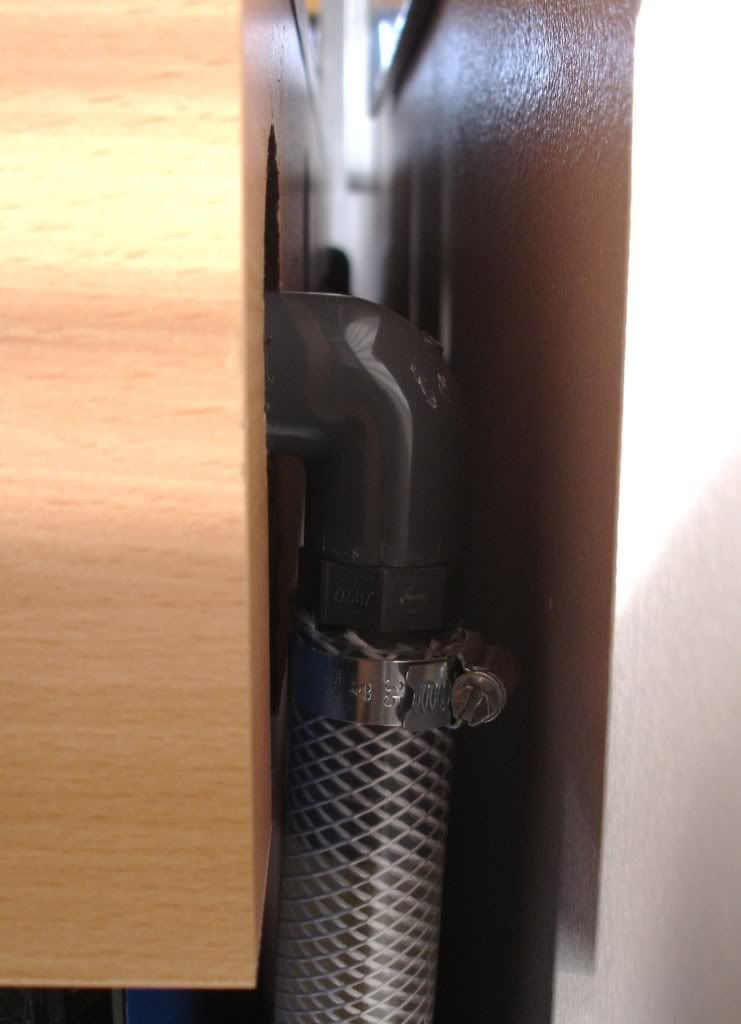

3x pvc elbow 25mm
1x pvc hosetail 25mm rigid to 25mm flexi pipe
1x end cap 25mm
1x pvc pipe 25mm length how big you want spraybar drill holes every 1"
1x 25-35mm hose clip
All glued with pvc solvent glue



[Mastiffman]

NICE!
Did you replace all of the hose on your FX5? Both intake and output?

Also, how did you hang the Spraybar inside the tank? Suction cups with clips or something?



[08trdoffroad]

Here is a detailed write up I put together when I built one for one of my tanks.

http://www.monsterfishkeepers.com/forums/showthread.php?t=302083&highlight=fx5+spraybar



[ashmyster]

NICE!

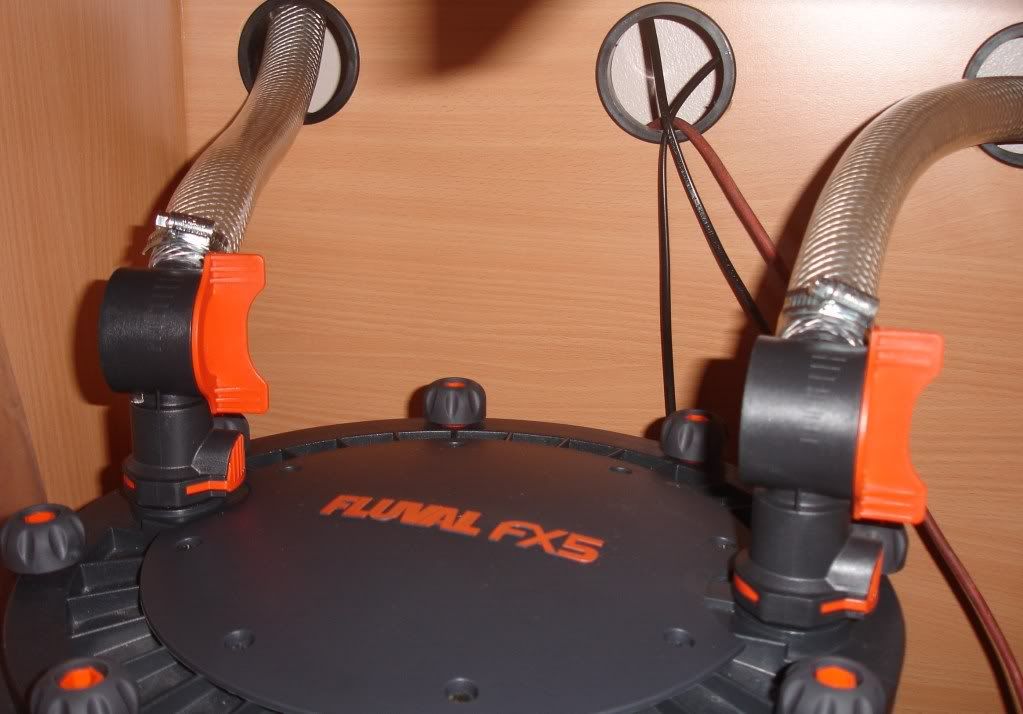

Did you replace all of the hose on your FX5? Both intake and output?

Also, how did you hang the Spraybar inside the tank? Suction cups with clips or something?

i also hard piped the intake
