My 210g project tank

[CharlieTuna]

I picked up an acrylic 210g off CL for cheap awhile back. I'm in the process of building the stand and designing a sump. This project has taken longer than expected as I'm not able to work on it as much as I would like. None the less, I think it is coming along nicely.

I hope to move the stand to it's place in my house and set the aquarium on it this weekend. The aquarium needs some minor repair and has a few scratches that need attention, it will still be awhile before I have fish in it.

After the aquarium is ready I plan on doing the finish work on the stand, I'm leaning towards using cherry wood for the outside, I will need to build a canopy too.

My sump design is almost finalized, looks like it will be about 100g with a 45g refugium and an area for bio media.

This tank will house Mbuna cichlids. I also have a 100g SA community tank that is currently up and running.

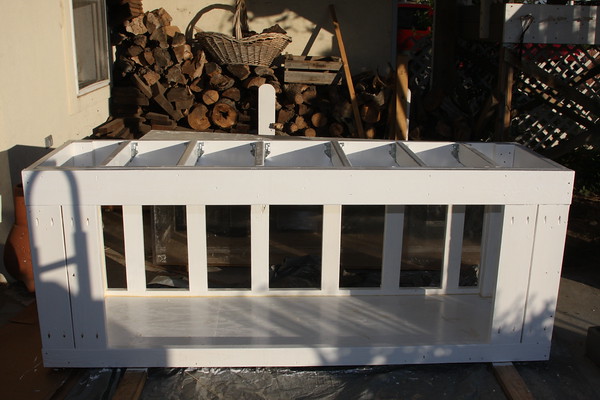

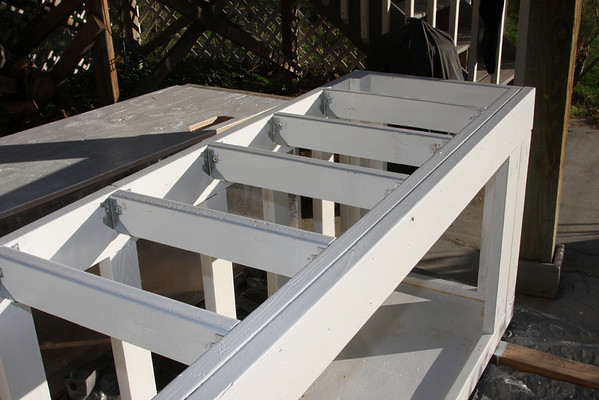

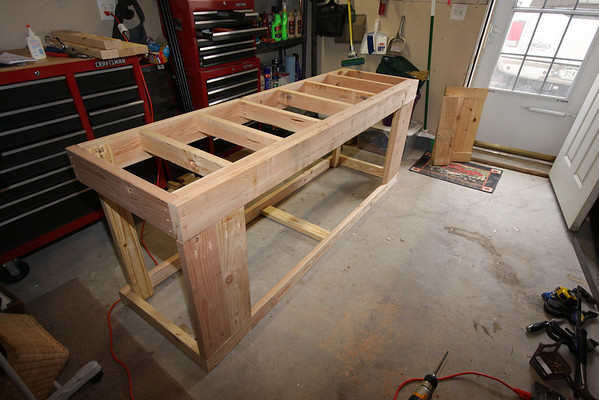

Here are a few pics of my new project, I will update this thread as I make progress.



[kyoshi]

looks very sturdy should hold well



[CharlieTuna]

A have an update

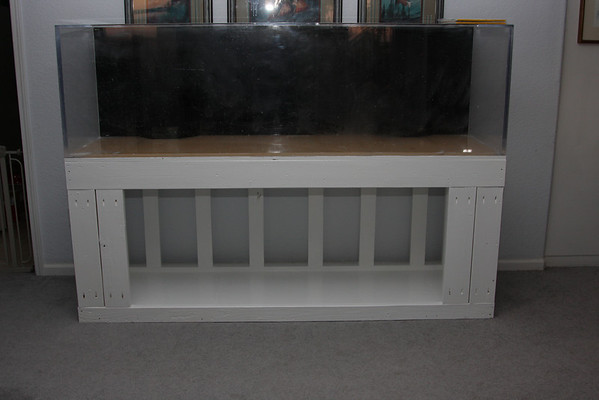

The stand frame is now complete and has been moved inside with the tank to it's final resting location. I have been scouring CL for the components I want. So far I have picked up two Ocean Clear canister filters, one with UV, and a Mag Drive 18 pump (came with the filters). I have also purchased two ReeFlo Snapper external pumps from a fellow MFK'er, these will be for my sump. I have completed my sump design, I need to find a source for acrylic or possibly use a glass 75g for this, though I'm leaning towards building my own out of acrylic. Still playing around with designs for a canopy, lighting and deciding how I want to do the final finish work on the stand, I'm leaning towards mahogany as I have found a local source for exotic plywood and dimensional lumber. Next priority - start polishing the tank.

I have started thinking about stock too - I originally planned to go all Mbuna. After a few visits to my favorite LFS, I'm now considering a few large Haps to go with the Mbuna, they had some nice sized eye biters that I liked.

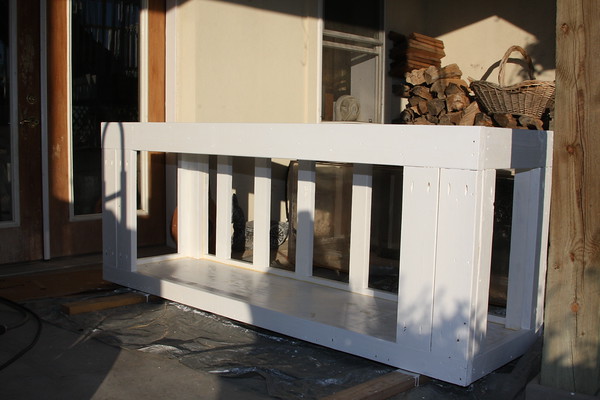

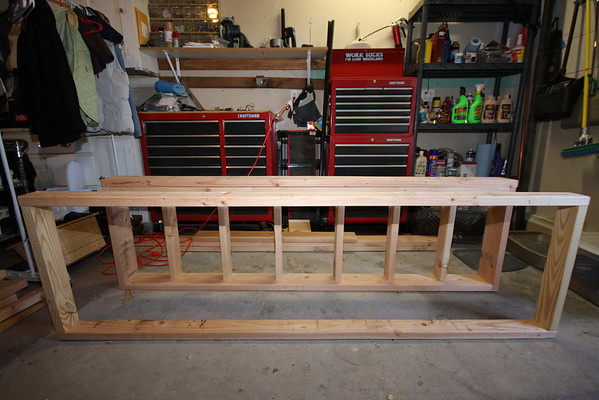

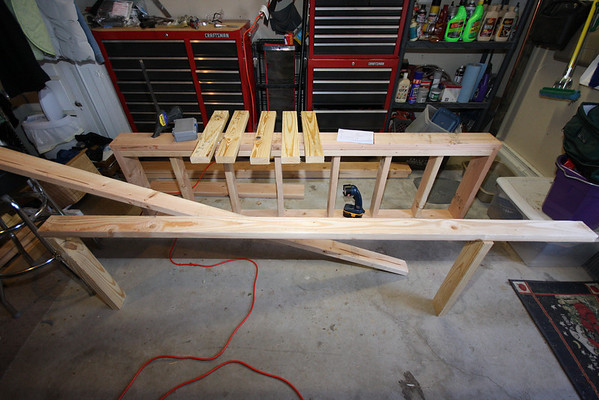

A couple of recent pics;



[Brian_Indiana]

Nice stand. It looks good and strong.



[CharlieTuna]

Thanks for the compliment on my stand. It is probably overkill - 2x6 and 2x4 construction with a bunch of 3/4" plywood. I wanted to leave the front open for access to my sump, but I think I got a little carried away and overbuilt it. It weighs more then the tank



[jsodwi]

Looking good keep the updates coming



[fishheadPH]

I think it's a great stand. I would like to build a wooden stand because my metal stand has a rot spot on one of the lower legs. I will use your build as sort. I didn't see any patent lol



[CharlieTuna]

I think it's a great stand. I would like to build a wooden stand because my metal stand has a rot spot on one of the lower legs. I will use your build as sort. I didn't see any patent lol

No patent I hope it works out well for you.



[CharlieTuna]

I'm working on polishing the tank today. Using Meguiars sanding blocks, Novus products and an automotive style buffer. So far it is slow going but the tank is looking good. I will post a few pics when I have it finished.



[GhostShrimpMan]

Seeing some progress!
