Plywood tank build.

Gridlock747

Feeder Fish
MFK Member
Aug 8, 2015
6
0
1
43
Washington State

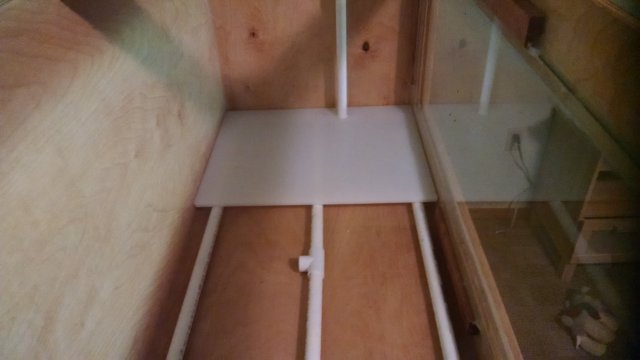

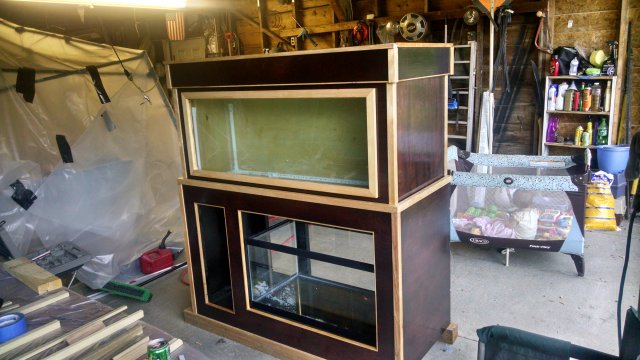

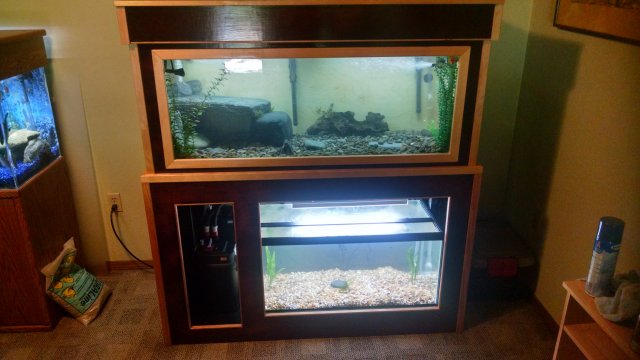

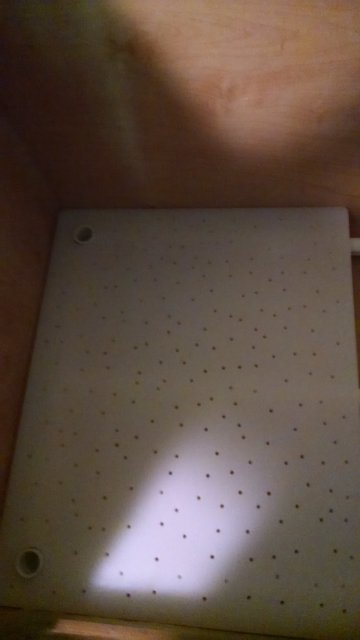

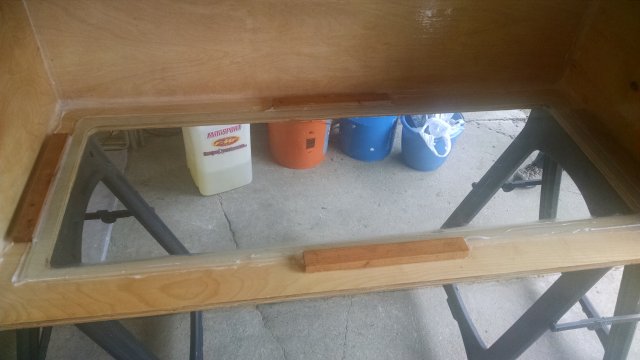

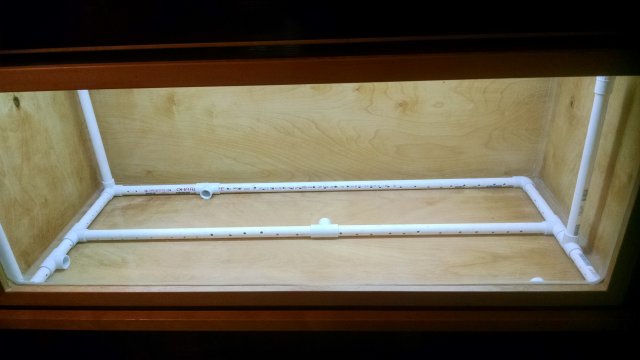

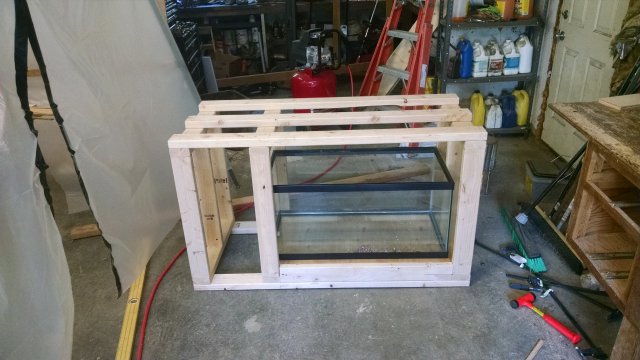

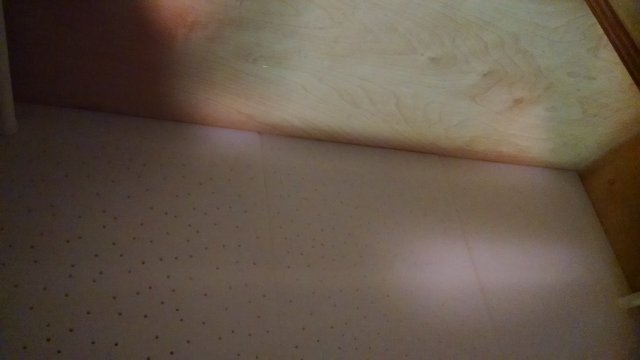

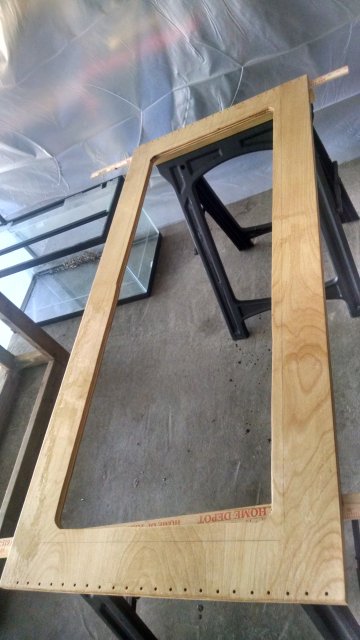

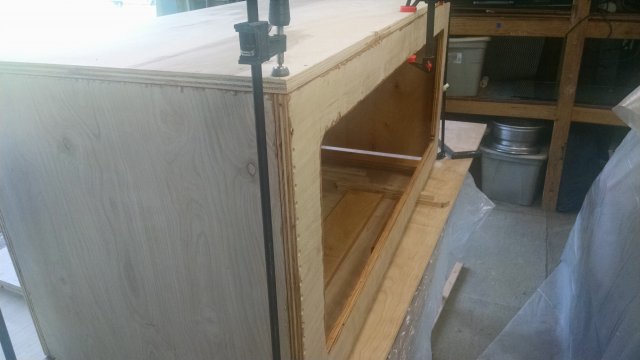

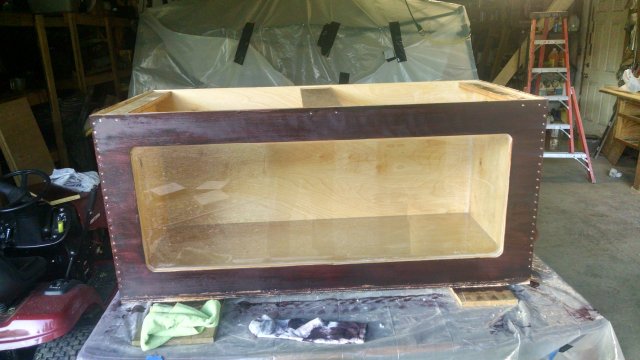

This build was inspired by all of your builds. And my buddy who sold the idea to me, and helped with the build. Most of my research was done on this forum. I used birch plywood. that was coated with 5 coats of west systems epoxy resin. I opted to make each panel water proof independently, relying on silicone to handle the rest. I learned several things with this 135 gallon build that I will apply to the next one. first of all, apply resin before clamping together to pre drill and countersink. secondly apply my finish before I assemble. Thirdly, polyurethane was clearly produced just to make me re sand a million times. I will never use it again. In the end the biggest issue for me was how to build my ugf. The pvc frame work was easy. I drilled holes 1/4 inch holes every inch or so in the pipe and put in 3 open tees. For gravel plates, i struggled. I considered acrylic but that was pretty spendy for something thick enough to handle my basalt rocks that were going in. And my wife was losing patience with my spending. Eventually I settled on three 24" x 18" x 1/2" poly-carbonate cutting boards. Using a 1 3/8" hole saw I drilled for the up lift tubes. And randomly drilled 3/16th holes everywhere. It was a fun build I cant wait to build a 800 gallon tank one day. Thank you all for your help and information. Please ignore the cloudy water. The substrate is river rock from home depot and I did not do a great job rinsing it lol. IMG_20150418_133137073_HDR.jpg
IMG_20150525_121533462.jpg IMG_20150525_150218895.jpg IMG_20150527_153313589.jpg IMG_20150605_062834370_HDR.jpg IMG_20150605_171844470 (1).jpg IMG_20150621_103445076_HDR.jpg IMG_20150801_190312072_HDR.jpg IMG_20150809_153817169.jpg IMG_20150809_153859238_HDR.jpg







Mbartoloni7

Jack Dempsey
MFK Member
Nov 10, 2010
59
4
38
LI, New York
I don't know much about plywood build except for what I've seen, but that is one awesome looking exterior. Never seen a plywood tank look so clean on the exterior.


kno4te

MFK Moderator
Staff member
Global Moderator
MFK Member
Dec 24, 2005
18,800
21,522
480
USA
Nicely done.


Gridlock747

Feeder Fish
MFK Member
Aug 8, 2015
6
0
1
43
Washington State
I'm going to move my jack Dempseys and my Oscar over to the top tank. Along with some sort of cat fish. I will also throw in a few large gold fish. I find them useful for cleaning the substrate. That is until they get eaten .
I haven't decided what I'm going to do with the bottom tank. I might let my daughter pick out some community occupants.
