Building a 1500 Gallon plywood & glass tank

[SIRPENTOR]

VL , I MUST SAY THAT THIS IS A WORK OF ART.
EXTREME TIME AND EFFORT BEING DISPLAYED HERE.

I RECENTLY INQUIRED FROM A COMPANY THAT BUILDS LARGE DISNEY STYLE AQUARIUMS AND MY MEASUREMENT WERE 6 ' X6 'X 6'

THE GLASS REQUIRES WAS 2 ..3/8 TEMPERED LAMINATED WITHA 0.6 MM INTER MEMBRANE LAYER....SO IN SHORT 3/4" FOR YOU WILL NOT CAUSE ANY PROBS...
I AM STILL WORKING OUT THE HUMIDITY CONCERNS...HRV SEEMS TO BE THE ROUTE/OR PUT A COLD AIR RETURN IN THE FISH ROOM

THIS TANK WILL BE A FISH ONLY SW TANK

NOW FILL HER UP......

WELL DONE



[I<3fish]

VL , I MUST SAY THAT THIS IS A WORK OF ART.
EXTREME TIME AND EFFORT BEING DISPLAYED HERE.

I RECENTLY INQUIRED FROM A COMPANY THAT BUILDS LARGE DISNEY STYLE AQUARIUMS AND MY MEASUREMENT WERE 6 ' X6 'X 6'

THE GLASS REQUIRES WAS 2 ..3/8 TEMPERED LAMINATED WITHA 0.6 MM INTER MEMBRANE LAYER....SO IN SHORT 3/4" FOR YOU WILL NOT CAUSE ANY PROBS...
I AM STILL WORKING OUT THE HUMIDITY CONCERNS...HRV SEEMS TO BE THE ROUTE/OR PUT A COLD AIR RETURN IN THE FISH ROOM

THIS TANK WILL BE A FISH ONLY SW TANK

NOW FILL HER UP......

WELL DONE

HOLY FRICKEN CAPS LOCK



[VLDesign]

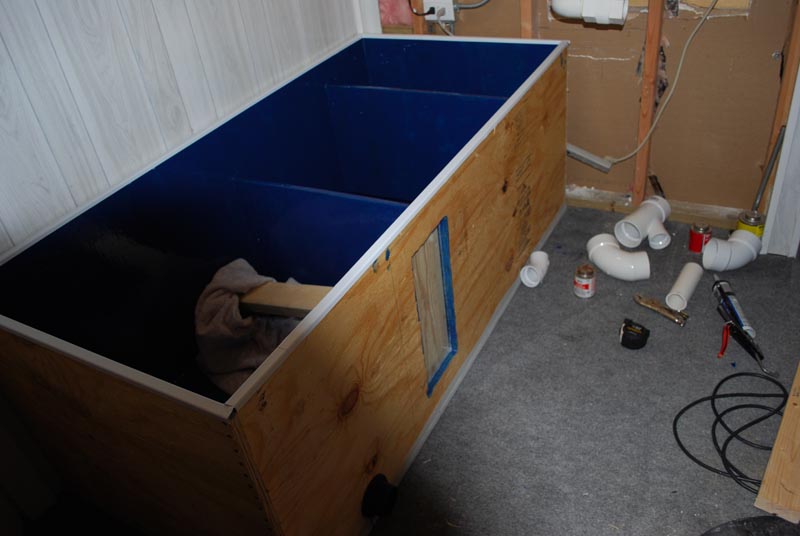

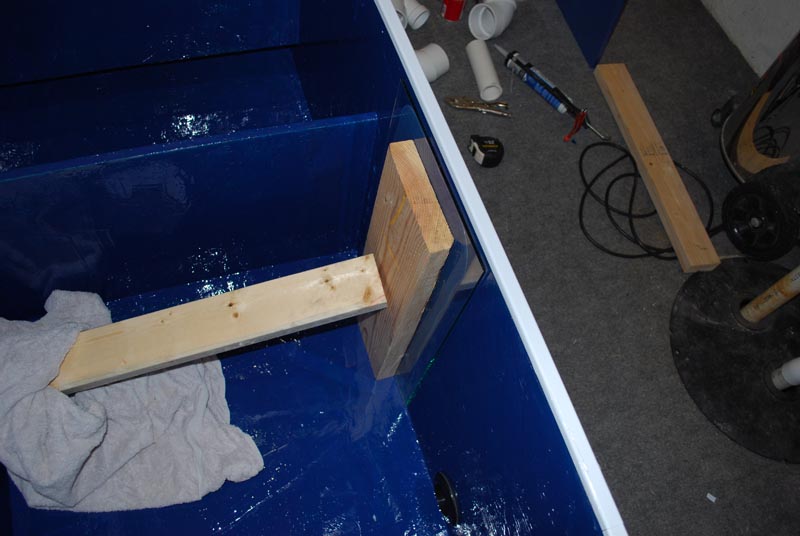

Todays update:

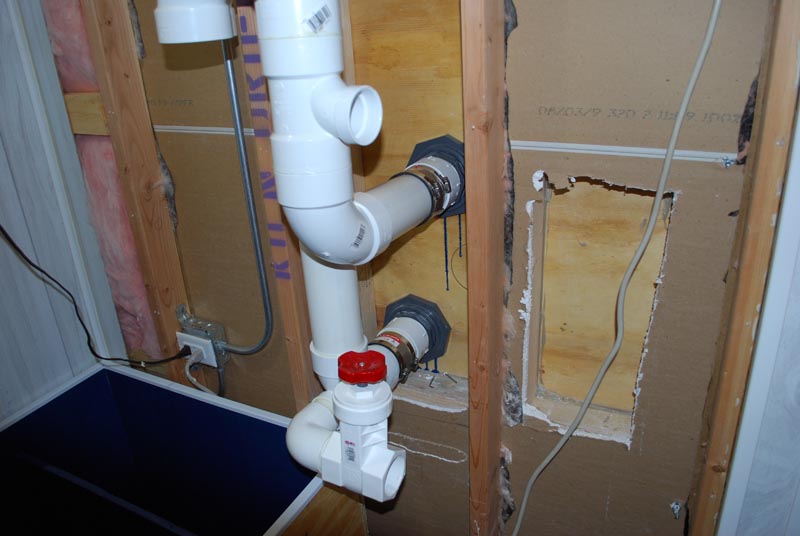

Plumbing is 80% done.
Sump Pond armor is dry

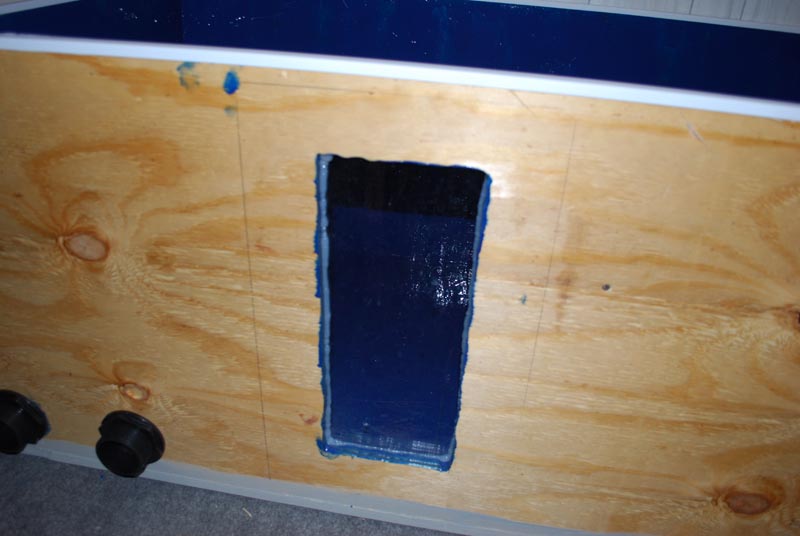

Sump viewing window is in
Sump bulk heads are in
Will complete the plumbing tomorrow and leak test the sump



[Eric A]

Looking awesome mate! Well done. Any rays going in it? *cough* Otorongo *cough*



[VLDesign]

Looking awesome mate! Well done. Any rays going in it? *cough* Otorongo *cough*

There is a lot of that going around.. lol

Most likey a few rays yes...

And thanks.. Can't wait much longer. Don't know if I can hold out until Friday now...



[nolapete]

You have to wait until Friday the 13th for MFK good luck!

Diggin on the gate valve!!! Nice work!



[tcarswell]

NICE plumbing. I cant wait. You better have monster cats in there! lol



[dpk2313]

Still cant believe how fast this tank came together nice work



[VLDesign]

Tonights update:

I had a bad gate valve that was cracked.. (I put some water in the tank to check the lower bulkhead seal and discovered the valve leaking) Good thing I did too.. lol

Drained it and replace it.

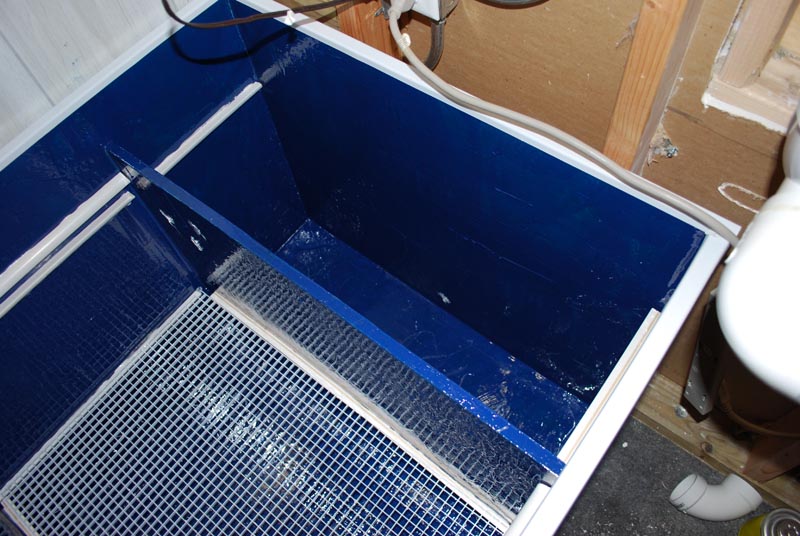

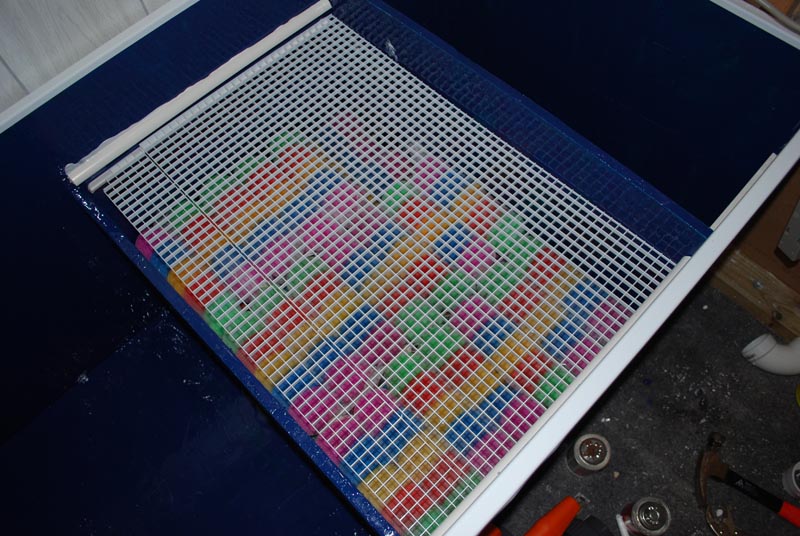

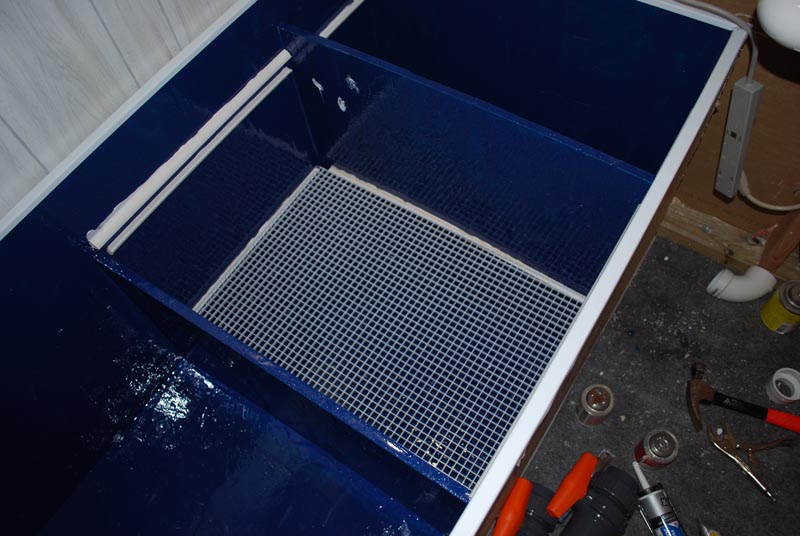

Completed the trays for the media in the sump. 610 scrubbies in the main chamber, the other 1000 or so will be in the wet/dry section to be added when the tank is running (Saturday?) They are currently in use keeping my tig happy.

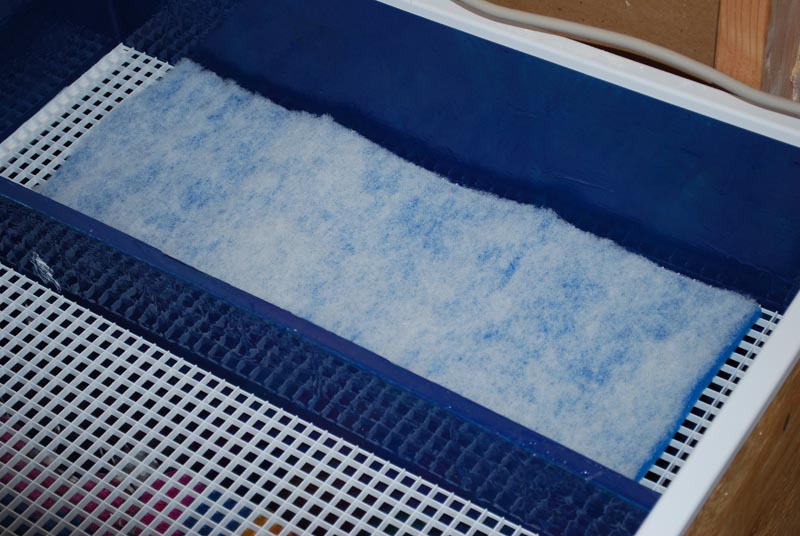

The first chamber will have filter floss (Upper area)and scrubbies (Very bottom) under the blue pad.

Will leak test the sump tomorrow, and move the main pump into place.

Then Friday I can begin filling!!!



[nolapete]

Looks great!
