Mega Powerful Nitrate and Phosphate Remover - DIY!
- Thread starter SantaMonica
- Start date
Update: Sideways Spray Protection
If you think there may be times when you cannot clean your screen on time (at least once a week), you may want to protect it from sideways spray. Sideways spray can sometimes happen if you let the algae continue to grow up into the slot. The easiest protection is when you clean it; clean the part at the top, about a half inch (13mm) away from the slot, very thoroughly. Don't leave any algae behind at all. This way the algae will take longer to get thick here. You will lose a bit of filtering, but it won't sideways-spray as soon. Also, clean every bit of algae out of the slot/pipe, for the same reason. The other solution is to attach solid or flexible plastic strips to the side of the pipe, which will stop any spraying. And ideally, the strips should block light too, so that nothing grows into the slot in the first place:
If you think there may be times when you cannot clean your screen on time (at least once a week), you may want to protect it from sideways spray. Sideways spray can sometimes happen if you let the algae continue to grow up into the slot. The easiest protection is when you clean it; clean the part at the top, about a half inch (13mm) away from the slot, very thoroughly. Don't leave any algae behind at all. This way the algae will take longer to get thick here. You will lose a bit of filtering, but it won't sideways-spray as soon. Also, clean every bit of algae out of the slot/pipe, for the same reason. The other solution is to attach solid or flexible plastic strips to the side of the pipe, which will stop any spraying. And ideally, the strips should block light too, so that nothing grows into the slot in the first place:
I stopped following about page10, and just finished reading the rest. I am still not sold that this could be the only filtration in a FW setup. I think it would be a great addition to a filtration system. It seems like the few guys on this thread that tried it on a fw setup were not too successfull in makeing it the only means of filtration.
I'd be comfortable with it as my only bio... but it's so easy to kill off the whole screen by overcleaning that you might be opening yourself up for spikes. In my setup I definitely needed mech in addition to the screen. The screen actually sheds enough to cloud my water if I don't put it through a fine filter sock right after the screen.crazy clowntang;2863533; said:
I really wish that the results you had Cvermeulenm were going to be much better. I just think that freshwater and saltwater setups differ in some many ways that sometimes the filtration for one can't be used for the other.
Update: CFL Reflectors
When I see a regular CFL bulb (not a floodlight) being used, I always say that it needs a reflector. Although it would just be easier to use CFL floodlight (which does not need a reflector), below are some reflectors you can use with regular CFL bulbs. You can find many others by searching for "CFL reflector", or by going to any hydroponics or gardening store:
http://www.hydroleaf.com/categoryview.do?cat_id=107
When I see a regular CFL bulb (not a floodlight) being used, I always say that it needs a reflector. Although it would just be easier to use CFL floodlight (which does not need a reflector), below are some reflectors you can use with regular CFL bulbs. You can find many others by searching for "CFL reflector", or by going to any hydroponics or gardening store:
http://www.hydroleaf.com/categoryview.do?cat_id=107
Some input about sealing the bulb due to build up: I had a 4000 lumen xenon gas floodlight on my screen and I guess evaporation slowly built up on the bulb. Anyways one day I went to turn on the bulb and as it came on there was a loud crack and the bulb went out. When I looked at it closer it appeared that there was deposits building up on the bulb and over time they seemed to weaken it causing it to just break. The bulb only lasted about two months. I guess I'm just trying to say be careful and check your equipment for weaknesses.
Those bulbs get hot too. Maybe it was the expansion/contraction that did it. CFL or T5 might be better in this regard, since they run cooler.
Part 6 of 7:
"The Food of Reefs, Part 6: Particulate Organic Matter" by Eric Borneman
http://www.reefkeeping.com/issues/2003-03/eb/index.php
"This article will address a very important food to corals and many other animals, particulate organic material (POM). This food source has many names, including detritus [waste], floculant organic matter, reef snow, marine snow, and suspended organic material.
"Not so long ago, marine aquarists made every attempt to be assured that their water column was "polished." I never fully understood the term, but the premise was that a clean water column was a good water column. Various means were employed to accomplish this, including the use of various power filters, mechanical flosses and screens, sterilizers, ozonizers, canister filters, diatom filters, foam fractionators [skimmers] and many other devices. [However] "polished" water might not be in the best interest of reef tanks or corals.
"Particulate organic material has its origins in life, being composed by and large of the remains, secretions and excretions of living organisms. On coral reefs, it is composed mostly of dead algae, bacteria, mucus, and feces.
"When food, waste, or other particulate organic matter (POM) is trapped, especially in an aerobic environment, it is acted upon by several types of bacteria that break down the substances into more basic dissolved organic and inorganic components. Some of these breakdown components are organic acids and refractory compounds that can impart a yellow tint to the water column. This yellowing has been called "gelbstoff." However, both the substances remaining after [various types of] filtration, as well as the substances removed by the filtration, can be utilized by the life in the aquaria, and are taken up by corals, sponges, some other invertebrates, phytoplankton, bacteria, and algae.
"On reef slopes and crests, the [waste] material is mostly coral mucus, while over the reef flats and lagoons, the material is mostly algae and fecal matter. This material, by itself, has a high carbon content. However, it acts as a substrate for bacteria, ciliates, cyanobacteria, and other microorganisms that coat the particles. Bacteria can even convert dissolved organic material (DOM) into particulate organic material (POM) by aggregating it in the presence of carbon. This provides a substantially enriched particle replete with amino acids and valuably higher nitrogen content. As such, detritus [waste] becomes a very nutritious food source for many organisms. It is such a complex "dirt", that detritus has been described as a completely self-contained microhabitat of its own, with plant, animal and microbial components, and its own "built-in" nutrient source.
"Another major consumer group of detritus is the zooplankton. These small animals, themselves a very important food sources to reef consumers, have been found to have 90% of their gut contents composed of detritus. Mucus-producing animals, like corals, tend to trap detritus, and the material is either removed or consumed by ciliary action across the tissue surface. Many fish also consume coral mucus, and any attached particulate organic material"
"Detritus [waste] forms the basis of several food webs that are part of a balanced autotrophic/heterotrophic community. It also plays a role in establishing various levels of nutrient production and decomposition. It is this material that is the principal food source for the many bacterial species that work in various nitrification and denitrification activities. Before reaching the microbial community, however, it acts as a food source for the smaller consumers such as amphipods, copepods, errant polychaetes, protozoans, flagellates, ciliates and other animals whose activities contribute to the stability and productivity of a coral reef and a coral reef aquarium.
"It is the microbial community, though, that is most important in the detrital processes. On the reef, the productivity of bacteria (both aerobic and anaerobic oxidation and reduction, including important sulfate reduction) depends heavily on detritus. Without this microbial community, coral reefs would cease to exist.
"Corals, in particular, are notable for their consumption of detritus. All corals studied feed to some degree on POM, and coral communities have been found to remove half of the POM present on some reefs. So prevalent is this material, that it is termed "reef snow" in the wild. [...] Given the ability of so many corals to consume and utilize this material, along with its relatively high abundance and ability to provide up to 100% of corals' carbon and nitrogen requirements, it may now (hopefully) seem rather foolish to attempt to remove this material from aquaria.
"The Food of Reefs, Part 6: Particulate Organic Matter" by Eric Borneman
http://www.reefkeeping.com/issues/2003-03/eb/index.php
"This article will address a very important food to corals and many other animals, particulate organic material (POM). This food source has many names, including detritus [waste], floculant organic matter, reef snow, marine snow, and suspended organic material.
"Not so long ago, marine aquarists made every attempt to be assured that their water column was "polished." I never fully understood the term, but the premise was that a clean water column was a good water column. Various means were employed to accomplish this, including the use of various power filters, mechanical flosses and screens, sterilizers, ozonizers, canister filters, diatom filters, foam fractionators [skimmers] and many other devices. [However] "polished" water might not be in the best interest of reef tanks or corals.
"Particulate organic material has its origins in life, being composed by and large of the remains, secretions and excretions of living organisms. On coral reefs, it is composed mostly of dead algae, bacteria, mucus, and feces.
"When food, waste, or other particulate organic matter (POM) is trapped, especially in an aerobic environment, it is acted upon by several types of bacteria that break down the substances into more basic dissolved organic and inorganic components. Some of these breakdown components are organic acids and refractory compounds that can impart a yellow tint to the water column. This yellowing has been called "gelbstoff." However, both the substances remaining after [various types of] filtration, as well as the substances removed by the filtration, can be utilized by the life in the aquaria, and are taken up by corals, sponges, some other invertebrates, phytoplankton, bacteria, and algae.
"On reef slopes and crests, the [waste] material is mostly coral mucus, while over the reef flats and lagoons, the material is mostly algae and fecal matter. This material, by itself, has a high carbon content. However, it acts as a substrate for bacteria, ciliates, cyanobacteria, and other microorganisms that coat the particles. Bacteria can even convert dissolved organic material (DOM) into particulate organic material (POM) by aggregating it in the presence of carbon. This provides a substantially enriched particle replete with amino acids and valuably higher nitrogen content. As such, detritus [waste] becomes a very nutritious food source for many organisms. It is such a complex "dirt", that detritus has been described as a completely self-contained microhabitat of its own, with plant, animal and microbial components, and its own "built-in" nutrient source.
"Another major consumer group of detritus is the zooplankton. These small animals, themselves a very important food sources to reef consumers, have been found to have 90% of their gut contents composed of detritus. Mucus-producing animals, like corals, tend to trap detritus, and the material is either removed or consumed by ciliary action across the tissue surface. Many fish also consume coral mucus, and any attached particulate organic material"
"Detritus [waste] forms the basis of several food webs that are part of a balanced autotrophic/heterotrophic community. It also plays a role in establishing various levels of nutrient production and decomposition. It is this material that is the principal food source for the many bacterial species that work in various nitrification and denitrification activities. Before reaching the microbial community, however, it acts as a food source for the smaller consumers such as amphipods, copepods, errant polychaetes, protozoans, flagellates, ciliates and other animals whose activities contribute to the stability and productivity of a coral reef and a coral reef aquarium.
"It is the microbial community, though, that is most important in the detrital processes. On the reef, the productivity of bacteria (both aerobic and anaerobic oxidation and reduction, including important sulfate reduction) depends heavily on detritus. Without this microbial community, coral reefs would cease to exist.
"Corals, in particular, are notable for their consumption of detritus. All corals studied feed to some degree on POM, and coral communities have been found to remove half of the POM present on some reefs. So prevalent is this material, that it is termed "reef snow" in the wild. [...] Given the ability of so many corals to consume and utilize this material, along with its relatively high abundance and ability to provide up to 100% of corals' carbon and nitrogen requirements, it may now (hopefully) seem rather foolish to attempt to remove this material from aquaria.

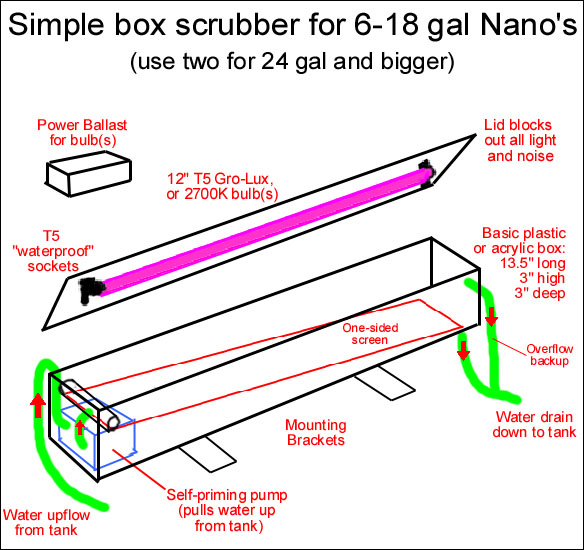

Here is a Nano hang-on-back or hang-on-top box scrubber that somebody could build to sell. That is the reason for the tighly fitting lid, and the built-in pump; no decisions or adjustments are needed by the customer. After building it, you could buy a banner ad on this site to sell them.
However if you were just building it for yourself, you can make the lighting simpler by just setting a T5HO light fixture on top of the box (although you would not get the benefit of the noise and light being sealed off by the lid), and you could make the pump simpler by just putting the pump in the tank (up near the waterline):
I'm not providing any links or part numbers, because it's up to the person building it to make sure that everything works together properly (it's not a beginner's project). Here are a few notes:
This scrubber MUST be placed above the tank, so it drains down into the tank.
The overflow drain must be lower than the bulbs.
The pump must be self-priming, capable of pulling water up 12" or so from the tank.
There should be no holes in the sides or bottom of the box, except for the drains; all other tubing and wires should come out of the top of the box. This will eliminate any possibility of leaky connections.
Two bulbs will provide more filtering than one will. And if you can fit three, all the better. 12" T5 bulbs are only 8 watts each.
The screen needs a solid backing, with some plastic canvas laid on over it.
The mounting brackets could hook onto the top of the nano, or they could be made into extended legs that go all the way down to the cabinet. Or, the whole box scrubber could be set on top of the nano, and be moved as needed.
The pump should be able to run "dry" without burning up.
The upflow-tubing should not go very far into the display; maybe a half inch or so. This limits how much water can be pulled out of the tank if there is a problem.
The size shown, 13.5" X 3" X 3", gives a one-sided screen of about 40 square inches. This will fit neatly behind (and on top of) a typical 6 or 8 gal nano without sticking out, but will also provide enough filtering for an 18 gal nano that gets weekly cleanings. For 24 gal and larger, use two separate scrubbers. This has the added benefit of redundancy, and, allows you to keep one running while the other one grows back after cleaning.
Overflow protection test: (1) plug up the drain at the bottom of the screen; the water should rise and start going out the overflow drain without spilling out of the lid, and it should not get high enough to touch the bulbs. (2) Now, also plug up the overflow tube. The pump should start running dry before the box spills, if you placed the upflow tubing high enough in the tank.
The T5 sockets should be the "waterproof" type, they keeps spray and salt out. They are not really "waterproof", but they are made for aquarium use.
Basic costs of building one (multiples would be cheaper)...
Box w/lid: $40
Pump: $35
2 Bulbs: $15
Sockets: $20
Ballast: $35
Misc: $40
---------------
Total: $185 USD
However if you were just building it for yourself, you can make the lighting simpler by just setting a T5HO light fixture on top of the box (although you would not get the benefit of the noise and light being sealed off by the lid), and you could make the pump simpler by just putting the pump in the tank (up near the waterline):
I'm not providing any links or part numbers, because it's up to the person building it to make sure that everything works together properly (it's not a beginner's project). Here are a few notes:
This scrubber MUST be placed above the tank, so it drains down into the tank.
The overflow drain must be lower than the bulbs.
The pump must be self-priming, capable of pulling water up 12" or so from the tank.
There should be no holes in the sides or bottom of the box, except for the drains; all other tubing and wires should come out of the top of the box. This will eliminate any possibility of leaky connections.
Two bulbs will provide more filtering than one will. And if you can fit three, all the better. 12" T5 bulbs are only 8 watts each.
The screen needs a solid backing, with some plastic canvas laid on over it.
The mounting brackets could hook onto the top of the nano, or they could be made into extended legs that go all the way down to the cabinet. Or, the whole box scrubber could be set on top of the nano, and be moved as needed.
The pump should be able to run "dry" without burning up.
The upflow-tubing should not go very far into the display; maybe a half inch or so. This limits how much water can be pulled out of the tank if there is a problem.
The size shown, 13.5" X 3" X 3", gives a one-sided screen of about 40 square inches. This will fit neatly behind (and on top of) a typical 6 or 8 gal nano without sticking out, but will also provide enough filtering for an 18 gal nano that gets weekly cleanings. For 24 gal and larger, use two separate scrubbers. This has the added benefit of redundancy, and, allows you to keep one running while the other one grows back after cleaning.
Overflow protection test: (1) plug up the drain at the bottom of the screen; the water should rise and start going out the overflow drain without spilling out of the lid, and it should not get high enough to touch the bulbs. (2) Now, also plug up the overflow tube. The pump should start running dry before the box spills, if you placed the upflow tubing high enough in the tank.
The T5 sockets should be the "waterproof" type, they keeps spray and salt out. They are not really "waterproof", but they are made for aquarium use.
Basic costs of building one (multiples would be cheaper)...
Box w/lid: $40
Pump: $35
2 Bulbs: $15
Sockets: $20
Ballast: $35
Misc: $40
---------------
Total: $185 USD
