Mega Powerful Nitrate and Phosphate Remover - DIY!

[SantaMonica]

Success Updates:

Jason1 on the RS site: "I have to tell you, this thing works great. My tank is definitely showing signs of improvement and looks really cleaned up from what it used to. Thank you."

Danno.Thomas on the SWF site: "Have mine up and functional on a 30 gal, that was just changed over from a 20 gal, had zero new algae growth in the DT. Scrubber is working like magic. Small feather dusters abundant. 6 years in the hobby and my tank has never looked more alive. This is my exclusive filtration."

Troythegreat on the 3R site: "i personally think that scrubbers are a Godsend to reefers. IMO scrubbers work much better than skimmers at 1/10th the cost, all you need is a little discipline. I've had my scrubber running on my 75gal for about 7 months without any trace of nitrates or phosphates. I have 2 clowns, 4 damsels and a engineer goby plus many coral. i feed my coral once a day and my fish twice a day.........i clean the scrubber every 5 days and change carbon once a month."

Chadjwil on the scrubber site: "I've been running an algae scrubber on my 55 [for 7 months]. That tank has never had a skimmer or canister or any other filtration in it, ATS since birth! I'm totally loving it, and...due to space restrictions in the stand ... my screen is undersized, and until last week it was under-lit (bare minimum now), and it's still keeping that tank clean and nutrient free. My fish are so healthy looking, more so than all but the best of the LFS within 50 miles, and my shrimpies molt like mad. I used to be a little leary about telling people that I ran an ATS because of all the sideways looks and comments that I got (and I'm sure my wife thought I was crazy too), but over the last few months more and more people have been commenting on how nice our tank looks, and that theirs was full of algae and a pain to clean all the time, we must spend all our time cleaning and screwing with it...now I get a lot of satisfaction telling them that I spend 5 minutes scraping algae off a plastic tank divider every week or so and I'm done. True believer here."



[Bizarroterl]

SantaMonica,
We appeciate what you've done to help promote this technology. I have one request though - could you preface the results/etc with a SW/FW/Both so we know what is applicable to our setups and what isn't?



[SantaMonica]

Scrubbers are for both, although most of the posts are for SW. Really makes no difference as far as filtering. The only real difference is pods. But if the post is FW I'll try to make sure it says so.



[SantaMonica]

Update: Deep-Sump Nano's

There are two types of nano's: The one that has a hatch on the top, so you don't have to open the whole lid to get to the filters, and the one without a hatch, where you do have to open the lid. It's this second one (with a deep "sump"), that is the most difficult to put a scrubber into. Indeed, if at all possible, you want to instead make an external scrubber, that sits above the tank:

You can enclose the scrubber with a box, or just use the lid of the bucket, to keep the light in. And actually, since nano's need such small screens, you could just use a coffee can, with the lid, which will block out all light once sealed. Decorate the can like a vase, and it will add to your decor. And use black tubing too so it looks nice. It doesn't need air flow, unless you want evaporation and cooling. Regardless, if you do this design, make sure to use "aquarium-safe" silicon on all electrical connection inside the bucket (including where the bulb screws in), because water and salt will build and short it out.

If, however, there is no possible way to put a scrubber above your nano, then you can install one in the "sump" area if you are good at DIY. It's a tight fit, but it can be done:


Riaanp on the MASA site did this:

And Nitschke65 on the SWF site did this:

The idea is to use one of the compartments (probably the middle one) for a waterfall area. For lighting, although Riaanp put the light inside, it's probably best to put the light on the outside (back) of the tank, and scrub off the paint on the backside so that the light can get through to the scrubber screen. The bulb only needs to be one watt for every gallon, so a 13 or 18 watts CFL 3000K is fine.

Fortunately you don't need much screen size for a nano... just 2 square inches (6.25 square cm) for every U.S. gallon (3.8 liters), because the screen is one-sided.

This type of setup is nice because it does not require any cutting of the sump walls, and thus can be converted back easily. Also, there is no real cost... just the screen (2 layers of roughed-up plastic canvas, about $1 USD), and the bulb and socket, probably $7.



[SantaMonica]

Updates/Reminders:

Nano scrubbers: In my last update, I said a coffee can would make a good nano scrubber. I meant a plastic coffee can.

Wattage: Your goal should be to get at least 0.5 watts of CFL (compact flourescent light) for each gallon of water, for medium filtering. For high filtering, get 1.0 watts per gallon. And don't use incadescent bulbs... they are much too hot and use too much power. The biggest CFL bulbs you should use should be 45W. If you need more, use extra bulbs, not a bigger bulb.

Be sure not to run bulbs 24 hours.

Be careful of overflowing skimmers; there is a lot of ammonia in that skimmate. A scrubber will help eat that ammonia if it overflows.

If you have cyano on your screen, you need more flow and/or more light.

If you smell any kind of "algae" smell while the scrubber is running, you need more flow.

If your tank has gotten rid of the nuisance algae, but cyano seems to be increasing, this is normal. Cyano does not eat nitrate and phosphate like algae does, so after your scrubber has starved the nuisance algae, the cyano has more room to grow. But if you keep your scrubber running strong and proper, the cyano will fade too.

If you have rubbery green algae, it means the flow is getting cut off and the algae is baking.

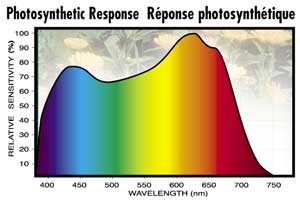

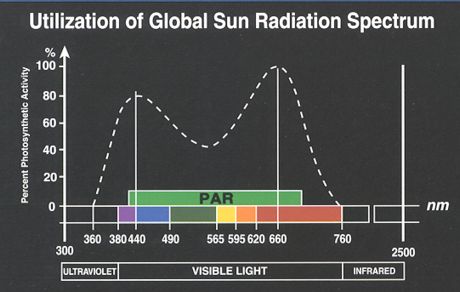

The best current spectrum for the bulb is 3000K (550 nm). This is yellowish-greenish, and it fits right in the middle of the red and the blue peaks of photosynthesis:

Pipe: Slots deliver much more water than drilled holes. Keep this in mind when figuring out how much flow you need.

Sump growth: Some people have open bulbs which light up the sump, and they are growing algae there. You don't want this to happen, so you need to use reflectors, or even foil, to block the light.

Coralline: Since phosphate will slow down coralline growth, you will start seeing more coralline as your phosphate drops in your water.

Advanced DIY trick: For those who can build such a thing, if you could build a top-off device which would shut off the flow to the screen, and then run your FW top-off water on it, then switch back to the regular flow, you would be able to extend the time between cleanings because the pods would be kept in control.

Dead fish: Scrubbers handle dead fish wonderfully; since ammonia is algae's favorite food, when a fish dies the algae will consume as much of the ammonia as it can, which could save your tank if the fish dies overnight. A skimmer, however, does not remove ammonia at all.

What equipment comes first: With regard to scrubbers, here are a few points to consider when planning which device should come before which other device (if you use them):

Skimmer: It should come before the scrubber and after the display, so that it does not remove the pods that come from the scrubber (if you need pods).

UV: Also should come before the scrubber and after the display, for same reason.

Mechanical filters/socks: Same as UV and skimmer. These trap food and pods (which rot and add Nitrate and Phosphate to the water), and thus should be the first thing you should stop using unless you change/clean them daily (but then you are removing the food for the corals.)

PO4/N03 removers: Really doesn't matter because N and P are the same throughout the system.

Fuge LR/LS/Macro: Doesn't matter, as far as nutrient removal is concerned.

Bio Balls (!): Should be removed slowly, unless you have massive amounts of fish, and little rock/sand.

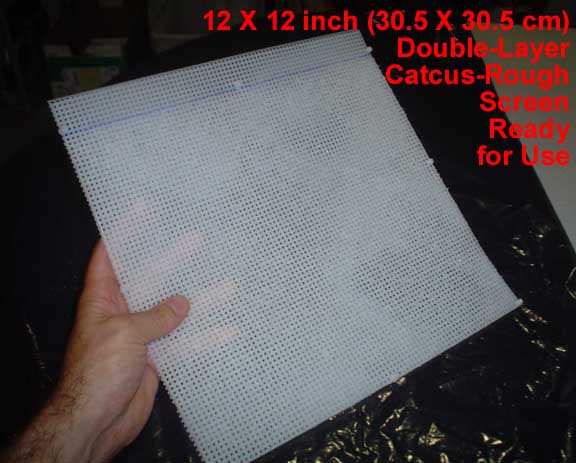

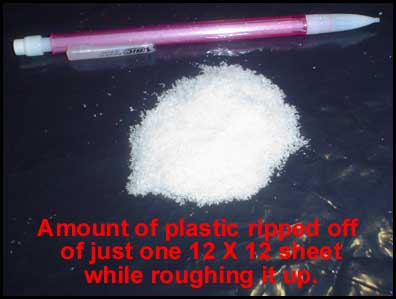

Screens: I will be selling ready-to-use screens soon. But until then, it's best to use two layers of extremely-rough plastic canvas, using a hole-saw (and about an hour) to rough up all four sides of the two sheets:

To demonstrate how rough the screen should be, here is a video of a towel dropped on a rough screen:
http://www.radio-media.com/fish/CanvasTowellDrop1.mpg

...compared to a smooth screen:
http://www.radio-media.com/fish/CanvasTowellDrop2.mpg



[SantaMonica]

An updated Algae Scrubber FAQ is up:
http://www.algaescrubber.net/forums/viewtopic.php?f=9&t=68



[whamphyry]

hi SM... got some questions here (sorry for the bother but there's only you to ask it to):

i am planning to start (as in start its setup) my SW tank with substrate and Live Rock... should i attach an algae scrubber to the starting tank immediately? (this will be the time to cycle the tank... is this okay?

how much will your going rate for the scrubbing media? how much to send it to the Philippines (shipping)? just want to know so i can get one or not

thank you!



[SantaMonica]

You can add a scrubber from the beginning. It will not grow too much, however, until you start feeding.

No screen material available yet... just use two layers of plastic canvas.



[goarn]

i wanna ask something about lightning. i am using 24w energy saving bulb. on the box, it says 24 watt power usage and 120 watts of light. this is why thse bulbs are energy saver.

here is my qustion: which parameter shall we rely on? 24 watt usage or 120 watts of light that bulb gives?



[SantaMonica]

24
