I have what I would call a medium size pond that I built a couple years ago in my backyard. I just joined this forum actually because I also have a 225 gal reef tank and am starting the build of a 900+ gal plywood reef tank and I was looking at all of the plywood tanks on this forum. I saw the pond section and thought that this would be a good place for my first post.
This pond is approx 5000 gal it is approx 30" below ground and 24" above ground level. See pictures below.
View attachment 1428162

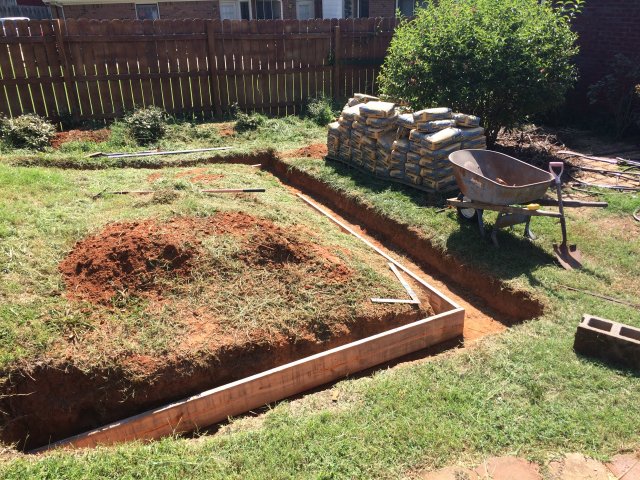

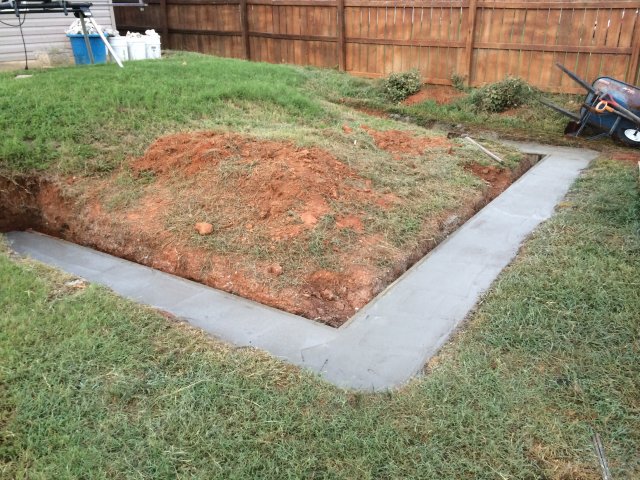

I started by digging a footing for the concrete blocks. This trench is 12" deep and 16" wide all dug with shovel. I mixed all of those 100 bags of concrete in that wheelbarrow.
View attachment 1428163

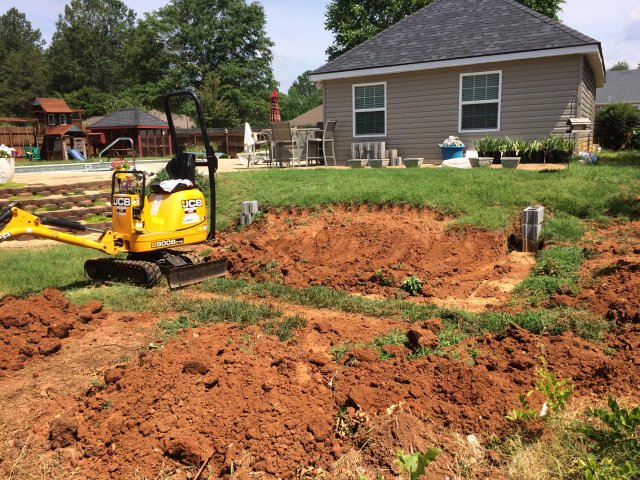

Next I had to dig out the center I did rent equipment for this.
View attachment 1428164

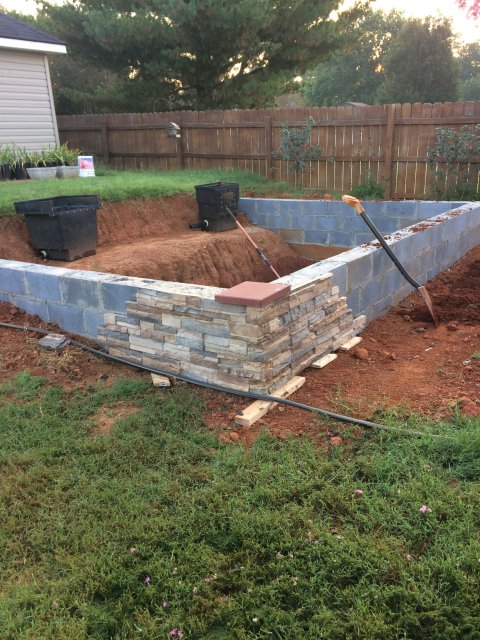

I then built a 24" high block wall with rebar in every cavity and again mixed concrete and filled every single block full. Yes its a little overbuilt but it will last forever.
View attachment 1428165

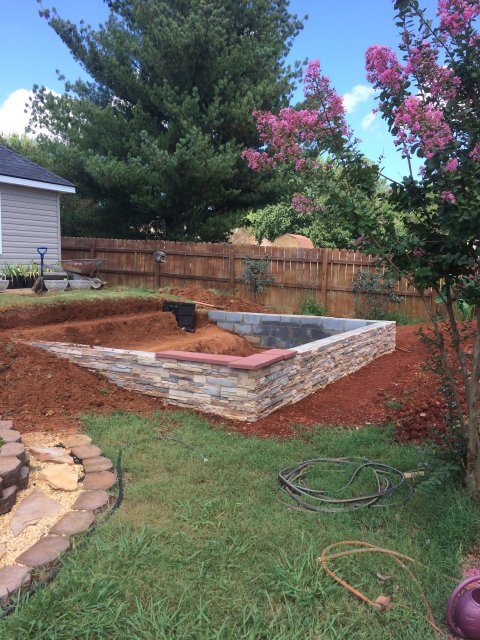

I veneered the outside with imitation stone to finish it off.
View attachment 1428166

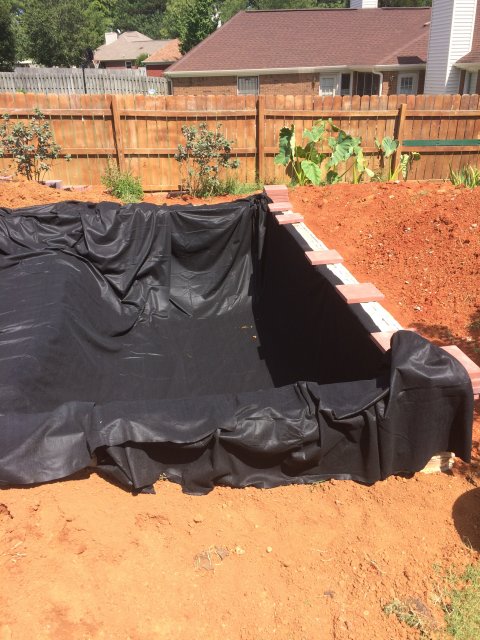

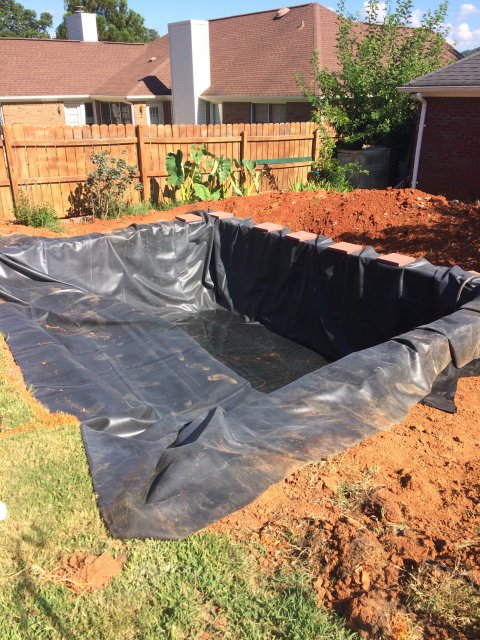

Next came felt liner and then rubber liner.
View attachment 1428168
View attachment 1428167

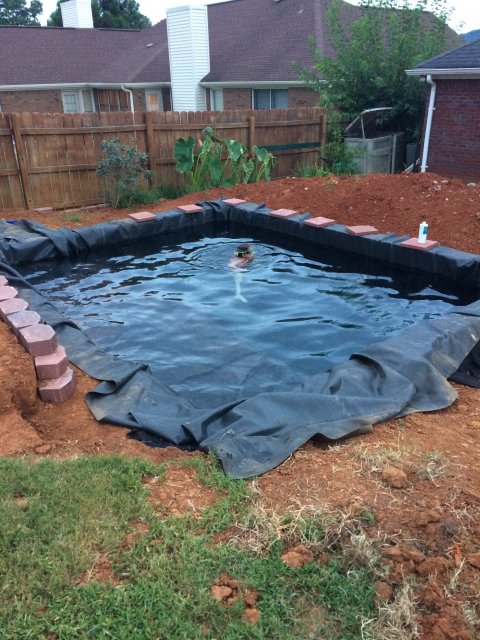

Before I could even get it full My Granddaughter had to swim
View attachment 1428169
View attachment 1428171

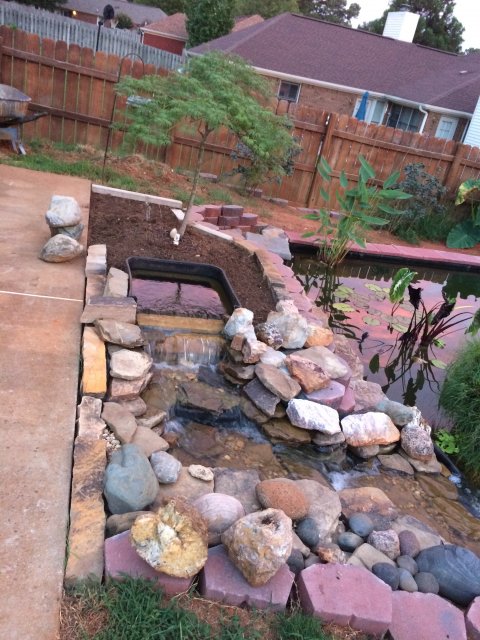

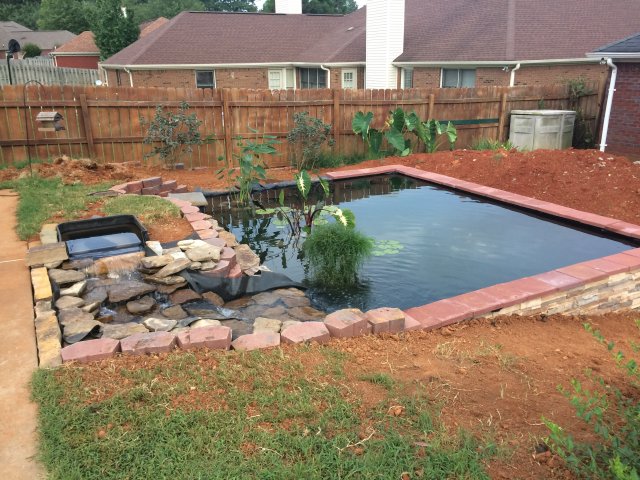

Water moving and plants are going in.
View attachment 1428172
Some landscaping and a nice Japanese Maple.

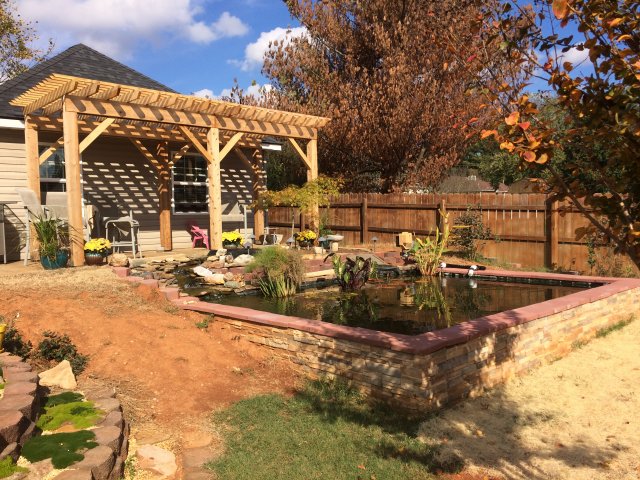

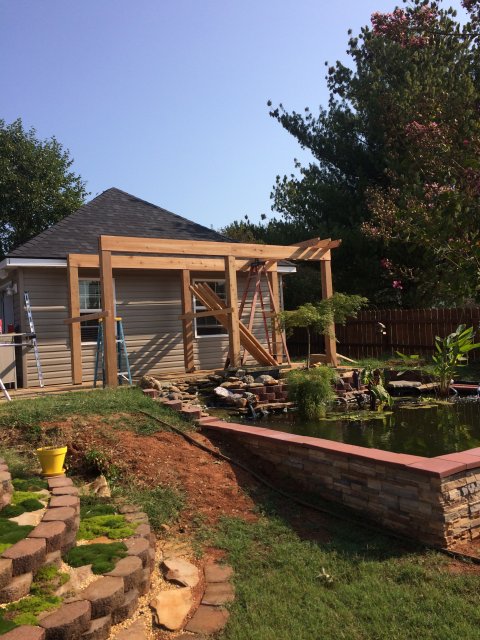

And of course no pond is complete without a pergola so my wife had me build tat next.
View attachment 1428173
View attachment 1428174

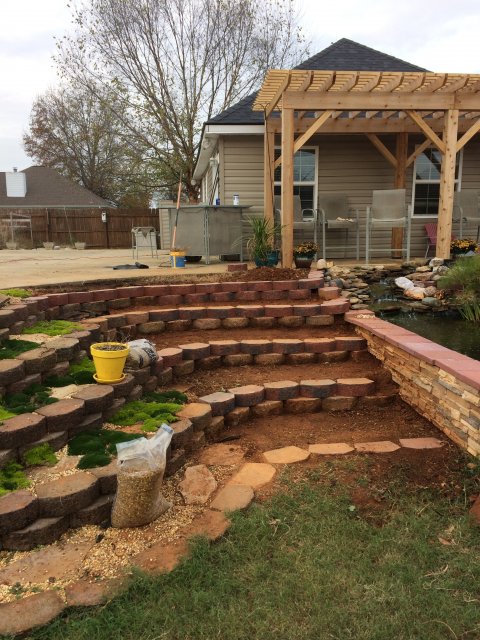

Next was to complete the retaining wall steps all the way over to the pond
View attachment 1428175

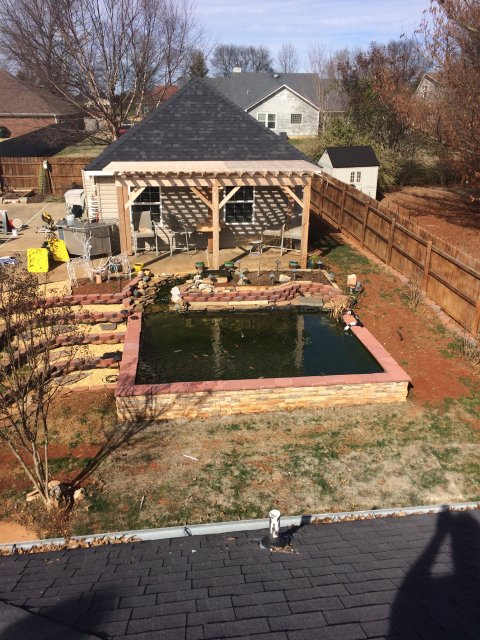

Completed project as viewed from the roof of my house
View attachment 1428176
