LED test on SM100:

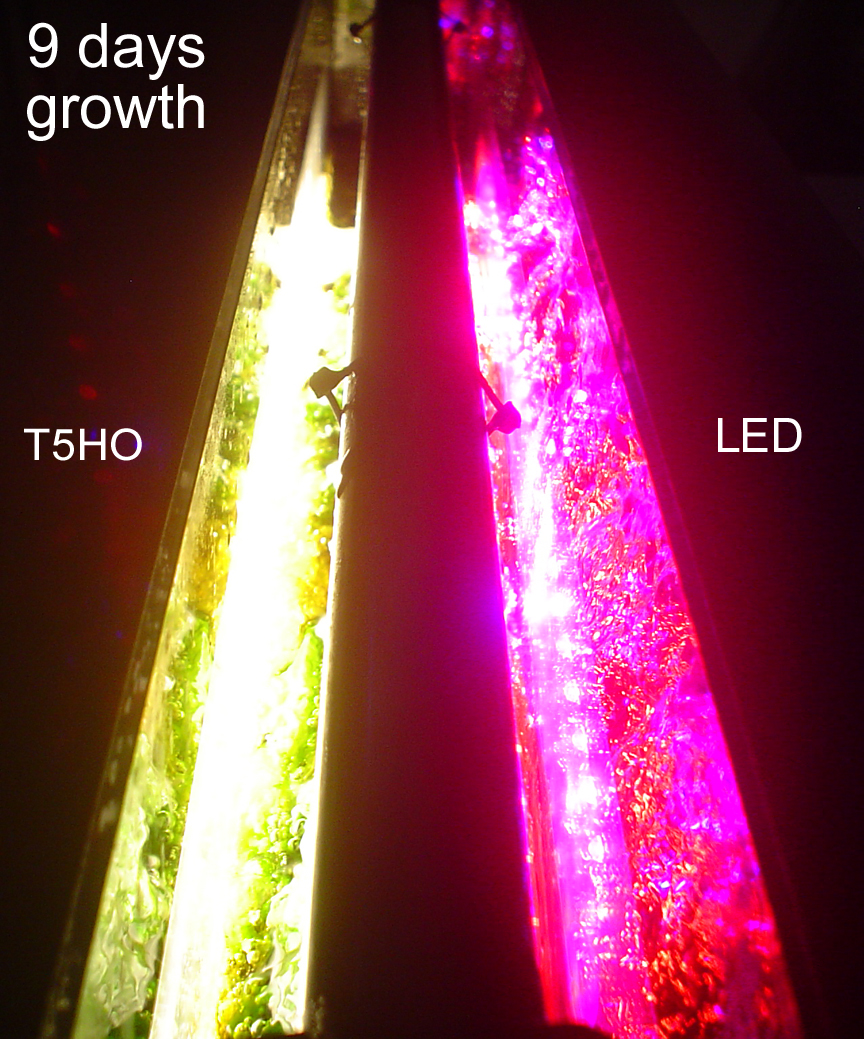

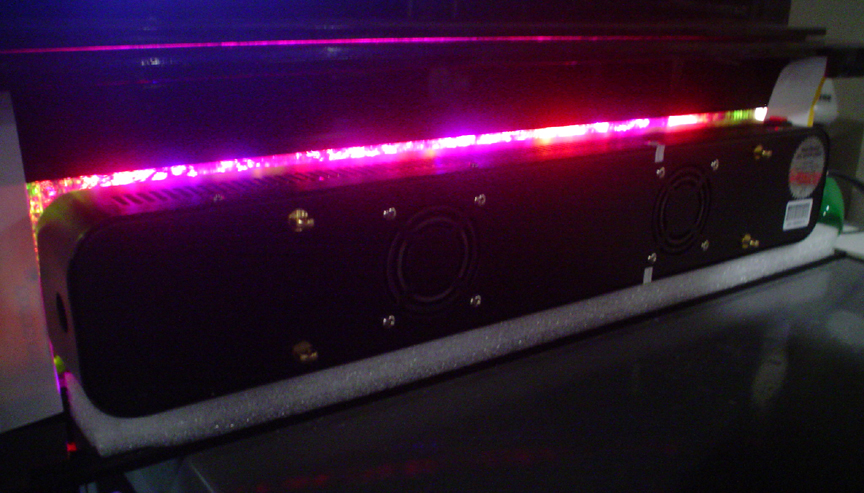

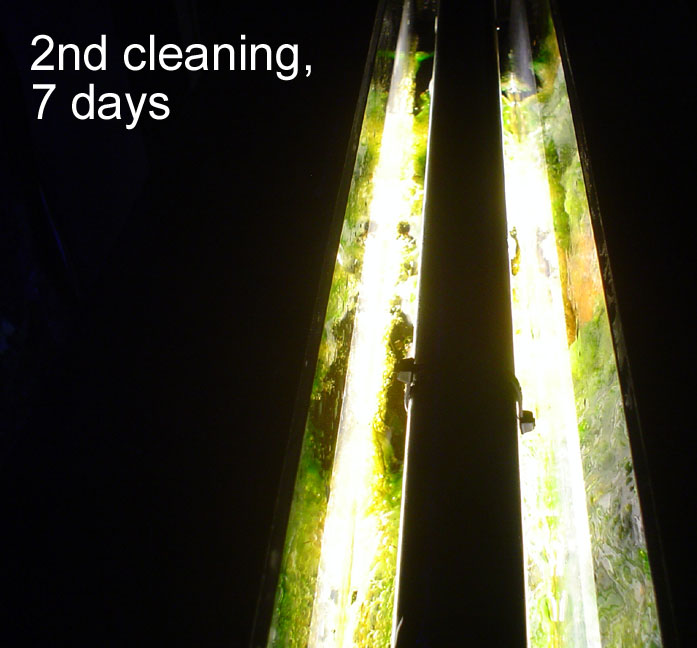

9 days of growth after cleaning. Fluorescent on left, LED on right. LED is the 50 watt Grow Light from EshineSystems in China. Actually uses 41 watts per the KillOwatt. Was raised up 3/4 inch to fit in middle of scrubber window. Camera is unfortunately an old one, since new one is being repaired. Growth was very similar on both sides; too similar to tell them apart. Growth on the LED side was floating a bit higher since it had no light near the bottom. LED was about $140 including shipping, and I asked for the black case:







Video:
http://www.youtube.com/watch?v=LKcib4YaoTc

LED:
http://www.eshinesystems.com/growlight/50W-led-grow-light-3g.htm

A

Accident

Gambusia
MFK Member
Nov 6, 2007
139
2
16
South Texas
Update: My horizontally mounted, above tank scrubber. The screens would 'float' up in the middle and become less effective because water wasn't flowing over the algae hardly at all. Bubbles would form under the screen and cause this. Also, because of the location under the hood/light, it was hard to remove them for cleaning. I got fed up and removed them all together and put in a new 10,000k 65w fluro left on 24/7. Algae grew like crazy on the acrylic pan and was easily scooped out using a small fish net. I was worried that it would clean off too much, but left a nice green stain on the acrylic. I know I should give it some dark time, but I havn't done that yet. Search my user name for the pix and details in this thread. Once again, this scrubber isn't large enough to handle my 150g tank, and works in conjuction with the giant val and other plants in the tank. In tank algae was near zero before a friend dropped off a large silver dollar fish that decimated my plants. Moved him and tank is recovering nicely now.

!A

S

SantaMonica

Plecostomus
MFK Member
Oct 9, 2008
680
53
61
Santa Monica, CA, USA
New Scrubber Sizing Guideline (Sept 2011)

Scrubbers will now be sized according to feeding. Nutrients "in" (feeding) must equal nutrients "out" (scrubber growth), no matter how many gallons you have. So...

An example VERTICAL waterfall screen size is 3 X 4 inches = 12 square inches of screen (7.5 X 10 cm = 75 sq cm) with a total of 12 real watts (not equivalent) of fluorescent light for 18 hours a day. If all 12 watts are on one side, it is a 1-sided screen. If 6 watts are on each side, it is a 2-sided screen, but the total is still 12 watts for 18 hours a day. This screen size and wattage should be able to handle the following amounts of daily feeding:

1 frozen cube per day (2-sided screen)
1/2 frozen cube per day (1-sided screen)
10 pinches of flake food per day (2-sided screen)
5 pinches of flake food per day (1-sided screen)
10 square inches (50 sq cm) of nori per day (2-sided screen)
5 square inches (50 sq cm) of nori per day (1-sided screen)
0.1 dry ounce (2.8 grams) of pellet food per day (2-sided screen)
0.05 dry ounce (1.4 grams) of pellet food per day (1-sided screen)

High-wattage technique: Double the wattage, and cut the hours in half (to 9 per day). This will get brown screens to grow green much faster. Thus the example above would be 12 watts on each side, for a total of 24 watts, but for only 9 hours per day. If growth starts to turn YELLOW, then increase the flow, or add iron, or reduce the number of hours. And since the bulbs are operating for 9 hours instead of 18, they will last 6 months instead of 3 months.

HORIZONTAL screens: Multiply the screen size by 4, and the wattage by 1.5

Flow is 24 hours, and is at least 35 gph per inch of width of screen [60 lph per cm], EVEN IF one sided or horizontal.

Very rough screen made of roughed-up-like-a-cactus plastic canvas.

Clean algae off of screen every 7 to 14 days, so that you can see the white screen material.

J

JDev

Feeder Fish
MFK Member
Oct 29, 2011
6
0
0
Earth
Hello SantaMonica,

I was looking for a simple yet effective device to filter nitrates and phosphates off the tank and your invention seems fulfilled my requirement.

I run an 80 gal fish only tank with moderate bio load, please advise me on what modification to your basic design should I make, sorry I wasn't able to read all the pages of this thread.

Thanks!

S

SantaMonica

Plecostomus
MFK Member
Oct 9, 2008
680
53
61
Santa Monica, CA, USA
Use the new guidline: Nutrients "in" (feeding) must equal nutrients "out" (scrubber growth), no matter how many gallons you have. So...

An example VERTICAL waterfall screen size is 3 X 4 inches = 12 square inches of screen (7.5 X 10 cm = 75 sq cm) with a total of 12 real watts (not equivalent) of fluorescent light for 18 hours a day. If all 12 watts are on one side, it is a 1-sided screen. If 6 watts are on each side, it is a 2-sided screen, but the total is still 12 watts for 18 hours a day. This screen size and wattage should be able to handle the following amounts of daily feeding:

1 frozen cube per day (2-sided screen)
1/2 frozen cube per day (1-sided screen)
10 pinches of flake food per day (2-sided screen)
5 pinches of flake food per day (1-sided screen)
10 square inches (50 sq cm) of nori per day (2-sided screen)
5 square inches (50 sq cm) of nori per day (1-sided screen)
0.1 dry ounce (2.8 grams) of pellet food per day (2-sided screen)
0.05 dry ounce (1.4 grams) of pellet food per day (1-sided screen)

High-wattage technique: Double the wattage, and cut the hours in half (to 9 per day). This will get brown screens to grow green much faster. Thus the example above would be 12 watts on each side, for a total of 24 watts, but for only 9 hours per day. If growth starts to turn YELLOW, then increase the flow, or add iron, or reduce the number of hours. And since the bulbs are operating for 9 hours instead of 18, they will last 6 months instead of 3 months.

HORIZONTAL screens: Multiply the screen size by 4, and the wattage by 1.5

Flow is 24 hours, and is at least 35 gph per inch of width of screen [60 lph per cm], EVEN IF one sided or horizontal.

Very rough screen made of roughed-up-like-a-cactus plastic canvas.

Clean algae off of screen every 7 to 14 days, so that you can see the white screen material.
